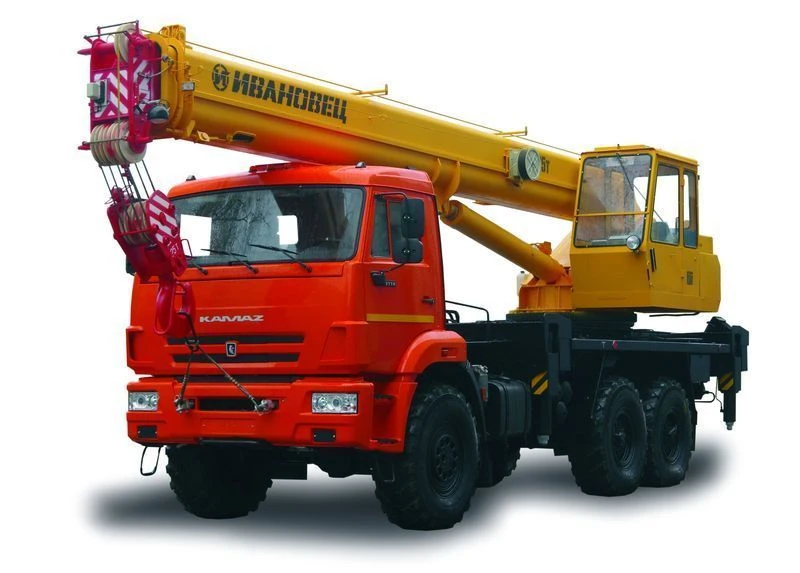

Truck Crane KS-45717K-3 with Cabin U7810.5 for Construction and Loading Applications

The truck crane KS-45717K-3 is designed for construction and assembly, handling and unloading operations with ordinary cargoes, as well as toxic and explosive substances at dispersed sites. Base chassis - KAMAZ-43118 of ecological class 5 Max. payload with conventional loads - 25 tonnes Max.

payload. - 20? Crane mechanisms drive - hydraulic with a possibility to combine working operations Boom - telescopic three-section boom.

Boom telescoping - by hydraulic cylinder and chain hoist system. The boom metal structures can be made of 10XSND steel and S700MC steel. In order to increase the boom length and under boom space it is possible to additionally equip the boom with a 9.0 m long gooseneck, which can be installed parallel to the main boom or at an angle of 30 degrees.

Limitation of lifting capacity and fixing of crane operation parameters - by means of microprocessor load limiter...
