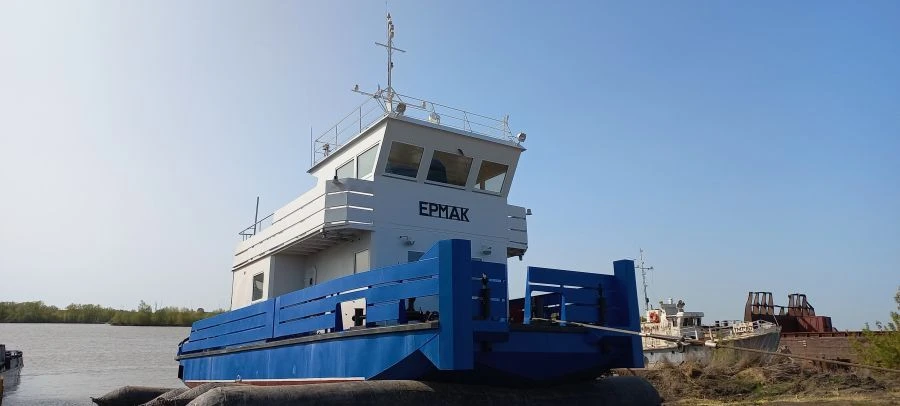

Tugboat-Pusher Project 090.05 for Efficient Barging and Towing Operations

Vessel type: small-size tugboat-pusher. Purpose of the vessel: - towing and pushing of dry cargo barges, barges for transportation of machinery with fuel in tanks and dangerous cargoes of 3 class in containers; - transportation of passengers in quantity of 2 persons. Swimming area: basins classified as "R" of the Russian Classification Society with a current speed not exceeding 6 km/h.

Architectural and structural type: tugboat with living quarters on the main deck, deckhouse on the deck, superstructure in the bow and engine room in the stern. Ship class: RCO class - Rms 1,2A. Group according to sanitary rules - I.

Main dimensions and characteristics: Overall length - 19,9 metres, Overall length - 18,5 metres, Overall width - 6.2 metres, SWL - 6.0 metres, Side height at midships - 1.5 metres, Draft in cargo - 0,6 m, Displacement at draught T=0,6 m. - 56,0. Hull material - steel.

Crew - 2 persons, Passenger capacity - 2 persons. Number and power of main engines - 1x270 kW.
