Turning and Thread Cutting Machine Model 16R25P-1 Available for Import

Turning and Thread Cutting Machine Model 16R25P-1 for Precise Metalworking

Manual Metal Lathes
Manufacturer: RSZ LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

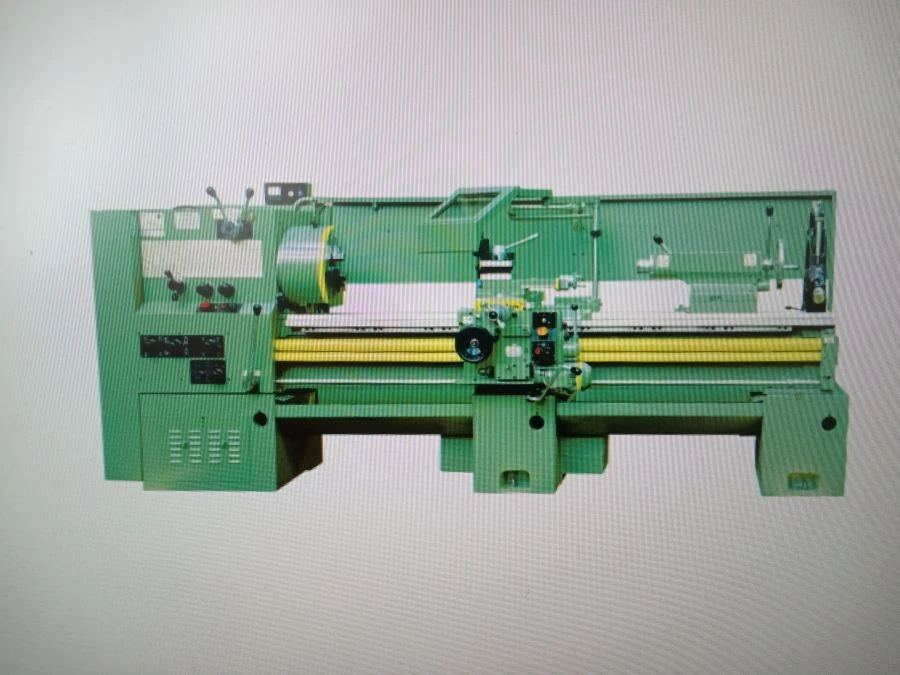

The lathe and screw-cutting machine model 16R25P-1 is designed to perform a variety of turning operations, including taper turning and thread cutting: metric, inch, modular and pitchevoy. The rigidity, vibration resistance and temperature stability of the design allows to obtain the required machining accuracy. Technical characteristics and rigidity of the machines allow to fully use the possibilities of high-speed cutting and carbide tools when machining both ferrous and non-ferrous metals. The machine is completed with 3-axis CNC.

Specifications

The largest diameter of the workpiece above the bed, not less than
500 mm
The largest diameter of the workpiece to be machined above the slide, not less than
290 mm
Longest length when mounted in centers
1000 mm
Caliper travel per revolution of the dial longitudinal movement
40 mm
Caliper travel per revolution of the dial crosswise
5 mm
Height of the tool to be mounted in the toolholder
25 mm
Spindle speed limits
12...2000
Total power of electric motors installed on the machine tool
11.69 kW
Machine dimensions
2825 mm
Machine weight
2700 kg
Processing length
1000 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
