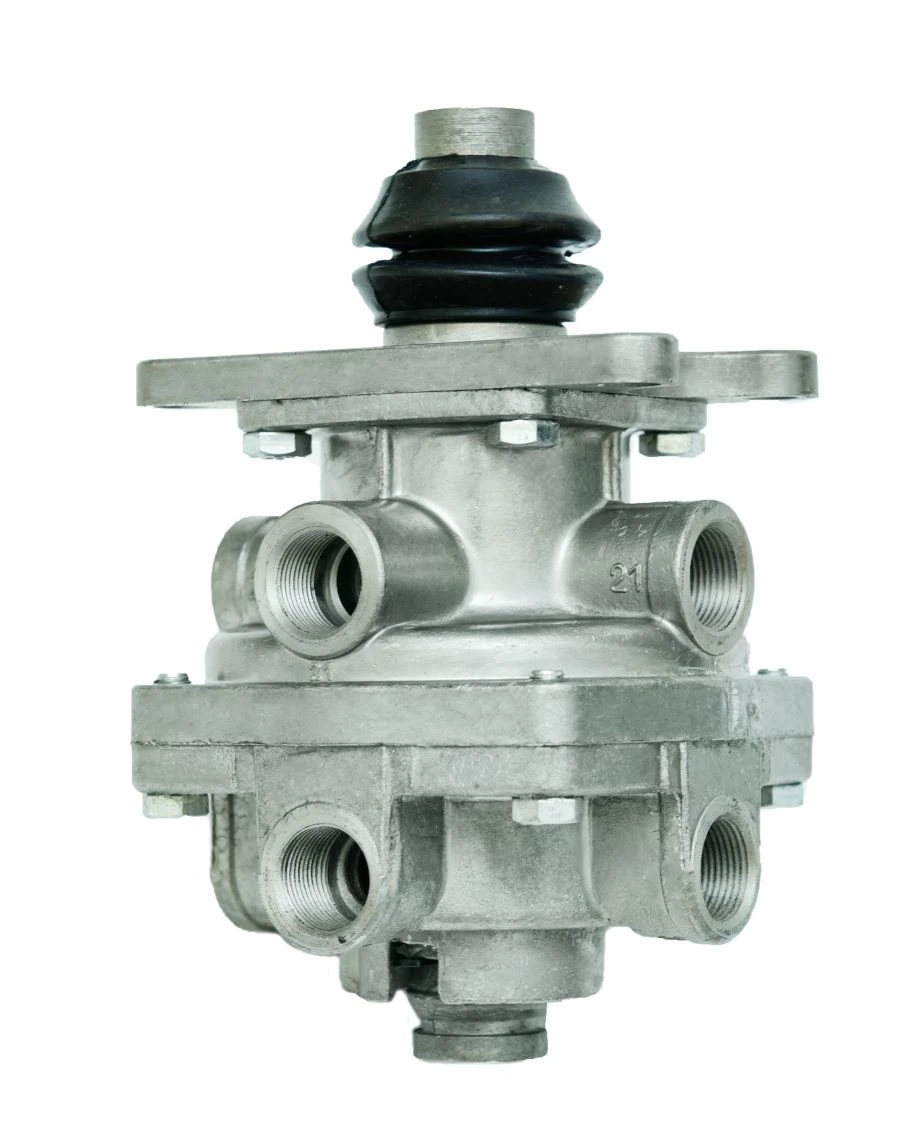

Two-Section Brake Valve for Dual Circuit System - Model 100-3514208-30
Manufacturer:
ROSSLAVL BRAKE SYSTEMS LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
Brake two-section sub-pedal valve is designed to control the actuators of the working drive of the car with two-circuit brake drive, as well as to control the valves of the trailer brake drive. It differs from 100-3514208 by the presence of an outlet window for the installation of a silencer and the turn of the base plate.
Specifications
Assignment
The two-section sub-pedal brake valve is designed for controlling the actuators of the working brake of the vehicle in case of two-circuit brake drive, as well as for controlling the trailer brake drive valves.
Equipment
Two-section brake crane - 1 pc. Transport plug - 8 pcs. Passport - 1 pc. Packing - 1 pc.
Certificate of Conformity
NO. EAES RU C-RU.MT14.V.00126/19
Operating medium
Compressed air, oil and water vapors may be present.
Environment
Air, possible exposure to condensate, water, dust, dirt, engine oils, fuel vapors, brake fluids, detergents, road de-icing agents.
Maintenance of the machine
In accordance with the operating manual of the motor vehicle for which it is intended
Installation of the apparatus
In accordance with the vehicle manufacturer's documentation
Working pressure
0.8 MPa
Max. cross-sectional area
B1/B8 2100/900 MHz mm
Free travel of the push rod until the upper section of the brake valve is pressurized
1.9...3 mm
Pusher stroke to full opening
8.4...10.8 mm
Total stroke of the pusher up to the stop
12.5...15.7 mm
Connection thread size
22 mm
Diameter of the connection hole in the arm
B1/B8 2100/900 MHz mm
Thickness of the arm connection part
11...11.9 mm
Temperature range
-46...80 °C
Weight
2.92 kg
Storage conditions
The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer
Manufacturer's warranty
The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.
Disposal information
The procedure for disposal of the product shall be determined by the Consumer.
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
