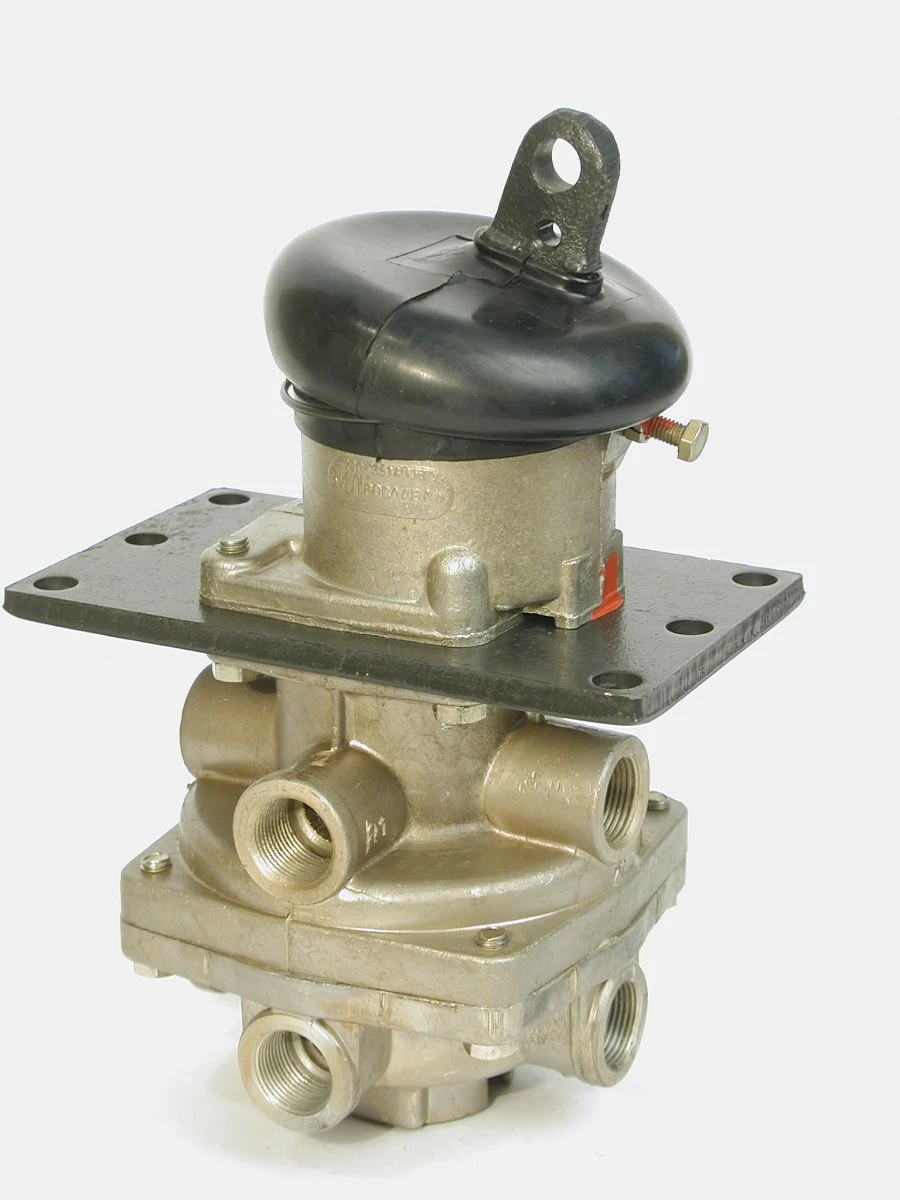

Two-Section Brake Valve with Lever for Effective Automotive Control
Manufacturer:
ROSSLAVL BRAKE SYSTEMS LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
Brake valve two-section with lever is designed to control the actuators of the working drive of the car in the two-circuit brake drive, as well as to control the valves of the trailer brake drive. It differs from 100-3514008 by the location of connection bosses (turn counterclockwise 90° relative to the plate with lever)
Specifications
Equipment
Two-section brake crane with lever - 1 pc. Transport plug - 8 pcs. Passport - 1 pc. Packing- 1 pc.
Assignment
Two-section brake valve with lever is designed for controlling actuators of the vehicle working drive in case of two-circuit brake drive, as well as for controlling trailer brake drive valves.
Environment
Air, possible exposure to condensate, water, dust, dirt, engine oils, fuel vapors, brake fluids, detergents, road de-icing agents.
Certificate of Conformity
NO. EAES RU C-RU.MT14.V.00126/19
Operating medium
Compressed air, oil and water vapors may be present.
Maintenance of the machine
In accordance with the operating manual of the motor vehicle for which it is intended
Installation of the apparatus
In accordance with the vehicle manufacturer's documentation
Working pressure
0.8 MPa
Max. cross-sectional area
B1/B8 2100/900 MHz mm
Free movement of the lever until the upper section of the brake valve is pressurized
4.7...7.4 mm
Lever travel to full opening
21...27 mm
Total lever travel to the stop
31.1...39.1 mm
Connection thread size
22 mm
Diameter of the connection hole in the arm
B1/B8 2100/900 MHz mm
Thickness of the arm connection part
11...11.9 mm
Temperature range
-46...80 °C
Weight
3.6 kg
Storage conditions
The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer
Manufacturer's warranty
The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.
Disposal information
The procedure for disposal of the product shall be determined by the Consumer.
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
