Two-Stage Cylindrical Gearbox C2U-315, C2U-355, C2U-400, C2U-450, C2U-500 for High-Power Equipment

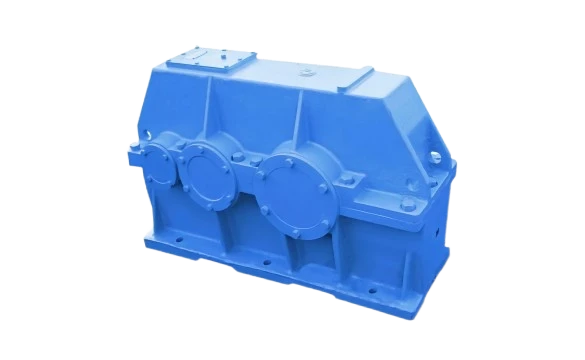

Horizontal cylindrical two-stage gearboxes Ts2U-315N (Ts2U-315), Ts2U-355N (Ts2U-355), Ts2U-400N (Ts2U-400), Ts2U-450N (Ts2U-450), Ts2U-500N (Ts2U-500) are used in high power equipment for general engineering. They are designed to increase torque and reduce speed, they are effective in devices operating in the mode of rotational and short-term loads. They have a high efficiency of 96%.

The device is horizontally orientated, has a two-stage design and spur gears with Novikov meshing. Input and output shafts: tapered, cylindrical, hollow. Gearboxes are manufactured in all climatic versions, which is indicated in the product marking.

Example: Ts2U-500-40-6-KC-U2, where: Ts2U - type of reducer; 500 - centre distance of the second stage; 40 - nominal gear ratio; 6 - assembly variant; KC - shaft design variant; U2 - climatic execution.
