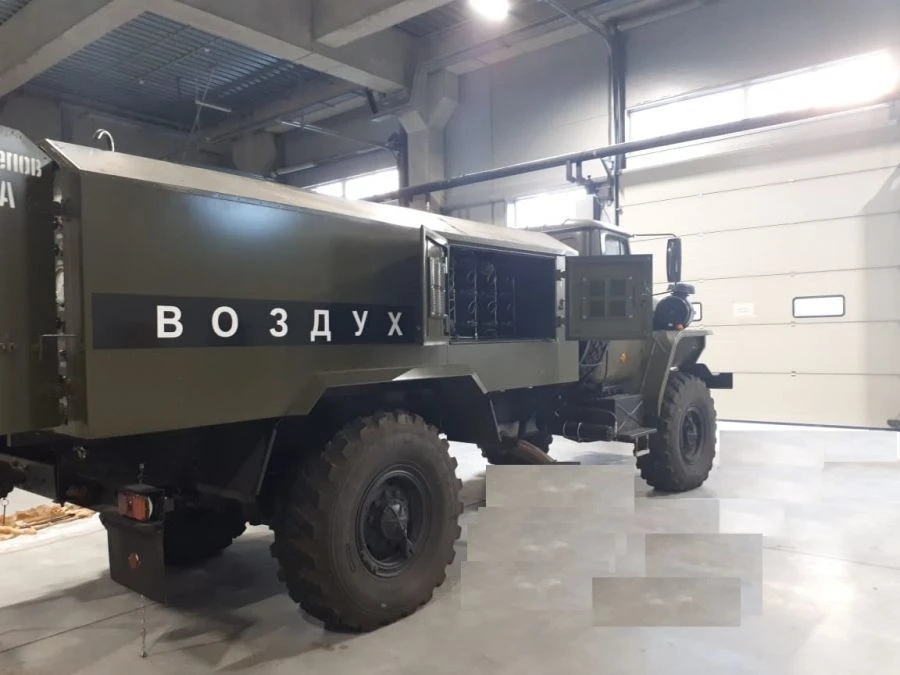

Unified Gas Charging Station UGS.M-VR for Charging Aircraft Systems

Unified gas-charging station UGZS.M-BP is designed for charging on-board systems of aircrafts with compressed air. The equipment of the station allows to perform the following operations: a) charging the station from an external source of compressed gas; b) charging onboard systems of aircrafts from the station cylinders by bypass and by means of a compressor; c) pumping gas from one group of station cylinders to another. The UGZS.M-BP station is serviced by two specialists: a vehicle driver and a specialist operator with special training.

Base of electric unit URAL-43206 Station capacity at ambient air temperature +20?? and pressure 760 mm Hg, gas pressure at compressor inlet 12,0 MPa (120 kgf/cm2) and compressor shaft speed 8,33-1 (500 rpm), nm3/h, not less than120 Operating pressure of dispensed gas, MPa (kgf/cm2)from 0.1 to 0.55 (1-5.5) 3.0+0.6 (30+6) 35.0±1.0 (350±10) Working gasAir Ambient air temperature at which the operation of the st... is guaranteed.
