Available for Import

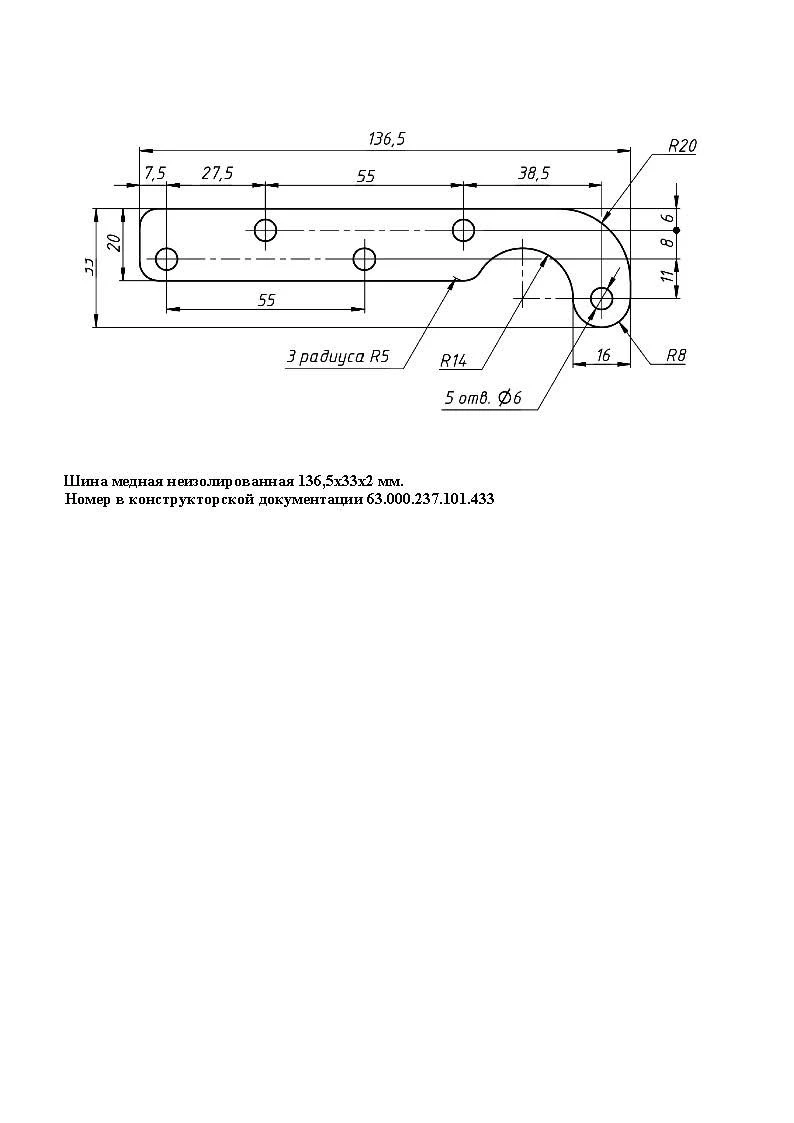

Uninsulated Copper Busbar 136x33x2 mm for Electric Drive Applications
Manufacturer:
ASK OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The tyre is intended for subsequent installation in the electrical equipment housings of the traction electric drive of the modular type for trams of the third generation 63.000.216 for the purpose of electrical connection of individual elements of the electrical equipment
Specifications
Assignment
Electrical connection of the apparatus
Material
Copper
Size
136x33x2 (mm)
Mark
Copper tire
Flammability class according to GOST 28157 (UL 94)
non-flammable
Connection size
absent
Housing type
absent
Housing material
absent
Fixing element
absent
Thread
absent
Type of cover
absent
Cover material
absent
Purpose of the frame
absent
Type of product
Current-carrying conductor
Number of installation locations
5
Connection dimension for mounting in enclosure
absent
Operating conditions
According to GOST 51321.1-2007
Operating temperature range
40...-40 °C
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
