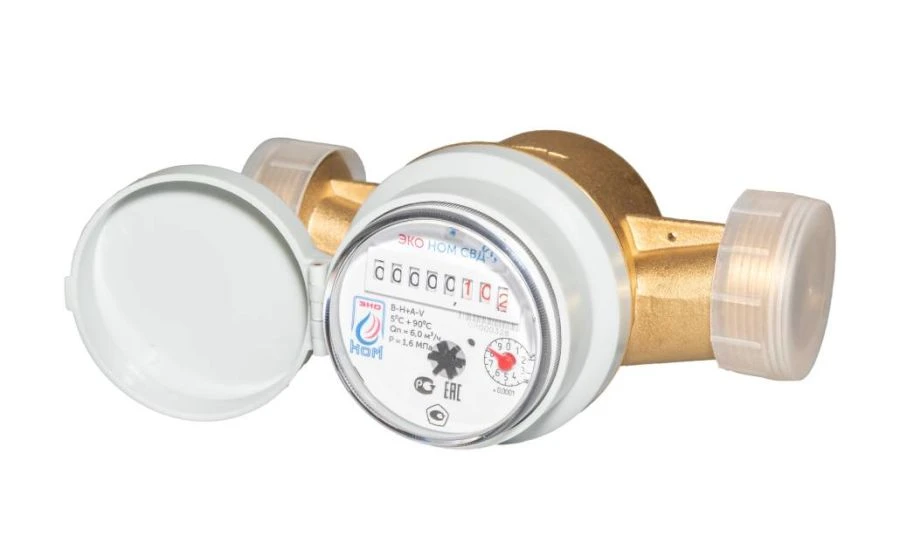

Universal Dry-Running Water Meters for Accurate Volume Measurement: EKO NOM SVD, EKO NOM SVDL

Water meters dry water meters universal single-jet/multi-jet winged universal models: ECO NOM SVD, ECO NOM SVDL, Type size: du 20, du 50. Designed to measure the volume of drinking water according to SanPin 2.1.4.1074-01 and network water flowing through the pipelines of cold and hot water supply systems, at temperatures from +5 to +90 C and operating pressure in the water network not more than 1.6 MPa (16 kgf/cm2), with the possibility of data transmission by wire and wireless (Pulse output, RS-485, LoRaWan). The counters ECO NOM CB modification with the symbol "DG" are completed with a pulse sensor, transfer coefficient (pulse price) - 0.01 m3 /imp.

ECO NOM CB meters are produced according to TU 26.51.63-009-17666192-2019. 1.4. Number of the measuring instrument in the State Register of Measuring Instruments - 76699-19.
