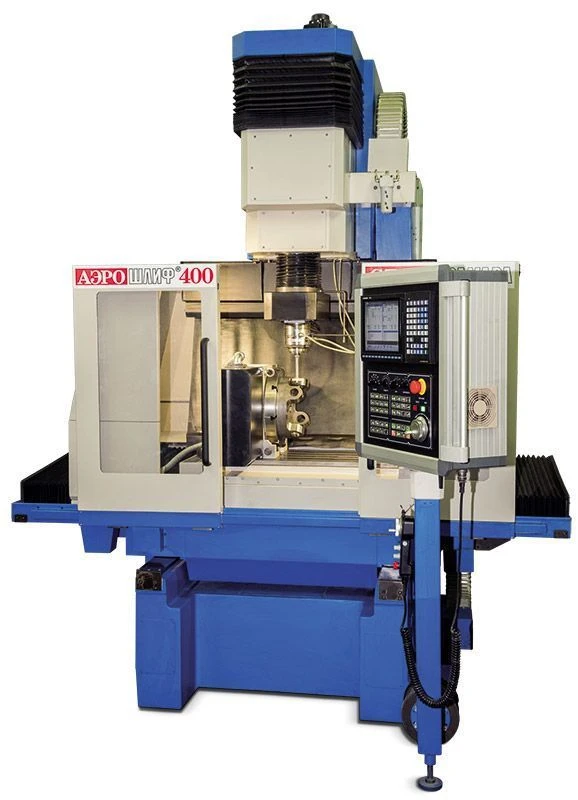

Universal High-Precision Coordinate Grinding Machine AeroShlif 400 for Precision Applications
Manufacturer:
STAN-Samara CJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Universal coordinate grinding machine of especially high precision Aeroshlif 400
Specifications
Type of product according to PP RF 616
Specialised grinding universal; with UCI; CNC)
Grinding spindle speed
6000...96000
Height
3200 mm
Grinding wheel diameter
3...100 mm
Width
2400 mm
Length
4000 mm
Resolution in X, Y, Z coordinates
0.001
Basic positioning deviation of Ra in X, Y, Z axes
0.0025 mm
Discreteness of setting displacements by coordinates C
0.001
Working feed rate limits for coordinates C
0.25-1440
Working feed rate limits in coordinates U
1-1600
Working feed rate limits for Z coordinates
1-10000
Working feed rate limits in X, Y, W coordinates
1-6000
Speed limits for high-speed grinding spindles
6000...96000
Maximum torque of planetary spindle rotation
15 nm
Maximum grinding depth (with grinding wheel diameter 50 mm)
150 mm
Largest bore diameter to be ground by the planetary spindle
200 mm
Discreteness of motion setting by coordinates Z, X, Y, W, U
0.001 mm
Machine dimensions, height
3200 mm
Machine dimensions, width
2400 mm
Machine dimensions, length
4000 mm
Machine weight with attachments
5500 kg
Largest grinding wheel diameter
100 mm
Smallest grindable bore diameter
3 mm
Type of equipment
Specialised grinding machines (universal; Uzi; CNC)
Distance between slots
80 mm
Number of table T-slots
5 pcs
Dimensions of the table working surface, length
800 mm
Dimensions of the table working surface, width
400 mm
Maximum distance from the end face of the grinding spindle carriage to the working surface of the table
810 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
