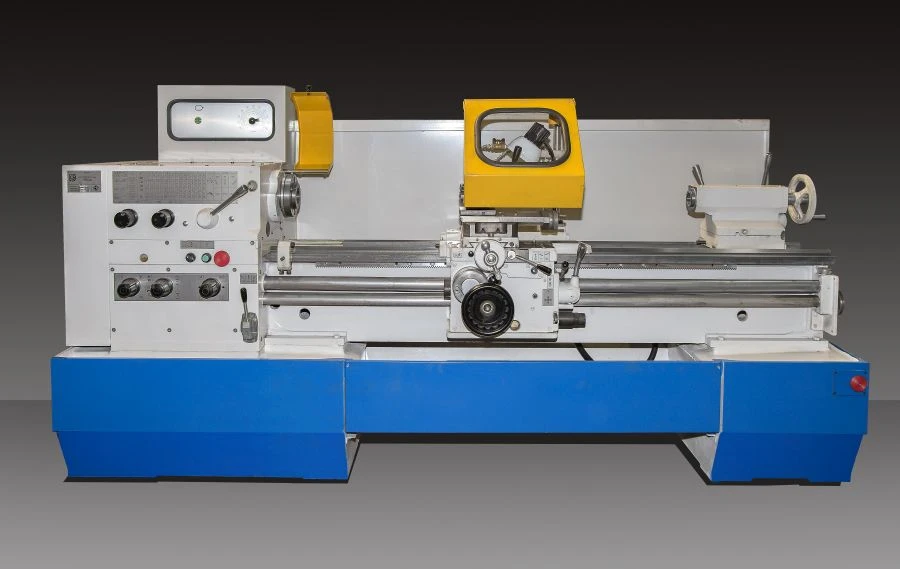

Universal Lathe and Screw Cutting Machines SAMAT 400 XV/SV/MV/LV for Precision Engineering
Manufacturer:
Middle Volga Machine-Building Plant LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Purpose
The line of universal turning and screw-cutting machines is represented by Samat 400 XV, SV, MV, LV models (analogue of 16B16) with maximum machining diameter above the bed 400 mm and RMT 500 and 1500 mm.
Accuracy class P (increased) according to GOST 8-82.
Design features and advantages
Simple and reliable design for long service life, ease of operation and maintenance;
Ability to perform a variety of roughing and finishing turning operations, as well as cutting all types of threads;
Main motion drives based on frequency converters, provides infinitely variable spindle speed control;
Wide range of longitudinal and cross feeds;
Fast idle movement of the slide.
The line of universal turning and screw-cutting machines is represented by Samat 400 XV, SV, MV, LV models (analogue of 16B16) with maximum machining diameter above the bed 400 mm and RMT 500 and 1500 mm.
Accuracy class P (increased) according to GOST 8-82.
Design features and advantages
Simple and reliable design for long service life, ease of operation and maintenance;
Ability to perform a variety of roughing and finishing turning operations, as well as cutting all types of threads;
Main motion drives based on frequency converters, provides infinitely variable spindle speed control;
Wide range of longitudinal and cross feeds;
Fast idle movement of the slide.
Specifications
Type of product according to PP RF 616
Universal lathes and screw-cutting machines, with CNC, CNC)
Height
1505 mm
Width
1110 mm
Length
2580 mm
Largest diameter of the product to be installed above the bed
400 mm
Largest diameter of the workpiece to be installed above the slide
220 mm
The largest diameter of the workpiece to be installed in the bed recess (GAP))
550 mm
Spindle bore diameter
45 mm
Height of tool in toolholder
25 mm
Tapered bore in spindle
Morse 6
Tapered bore of the tailstock quill
Morse 5
Number of spindle speeds
steplessly
Spindle speed limits
12-2200
Limits of rotary feed rate values
0.05-2.80
Limits of longitudinal rotary feed rates
0.25-56 mm
Constancy of diameter in cross-section at length 200
0.007 mm
Constant diameter in longitudinal section
0.012 mm
End face straightness
0.01 mm
Main motion motor power
5.5/7.5 kW
Machine weight
2040-2550 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
