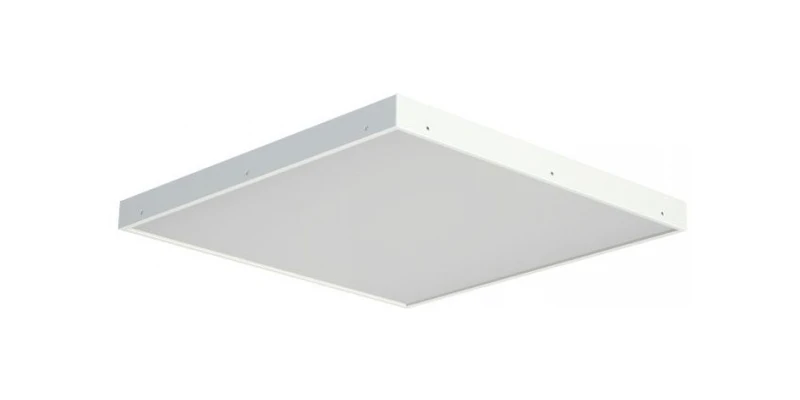

Universal LED Light TL04 OL ECP for Office and Commercial Applications

LED Ceiling & Wall Lights

Manufacturer: RECORD AETZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Universal luminaire TL04 OL ECP (DVO/DPO) for built-in / surface mounting.Designed for use in offices, administrative buildings, retail halls, shops, educational institutions, health care facilities.The body is made of sheet steel with white polymer coating. Diffuser - polymer lighting sheet, CL - "prism", OL - "opal".Light source - LEDs with colour temperature 3000/4000/5000 K and colour rendering index Ra>80 or Ra>90.Power supply - driver, meets all the requirements of current standards, cos >=0,98, ripple factor < 1%.The luminaire can be equipped with an emergency power supply unit (additional designation EM) for 1 hour or 3 hours.

Specifications

Power consumption, W

15...63 W

Height

55 mm

Luminous flux, lm

1700...7500 lm

Length

1195 mm

Width

595 mm

Housing material

Steel

Mounting type

surface-mounted/inline

Color rendering index (CRI)

Flat grinder, Specialised grinder

Type of diffuser

Opal/Prisma

Climatic execution (according to GOST 15150-69)

UHL4

Optical element material

Light sheet

Weight

2...5 kg

Color temperature (K)

5000 K

Type of luminaire

Universal

Light distribution class

Type of emergency luminaire

constant action

IK code

Upper operating temperature value

40 °C

Power factor

0.85...0.95

Degree of protection (IP)

IP40

Type of supply current

Variable

Type of lamps (LED, incandescent, fluorescent)

LED

Protection class against electric shock

Grade I

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
