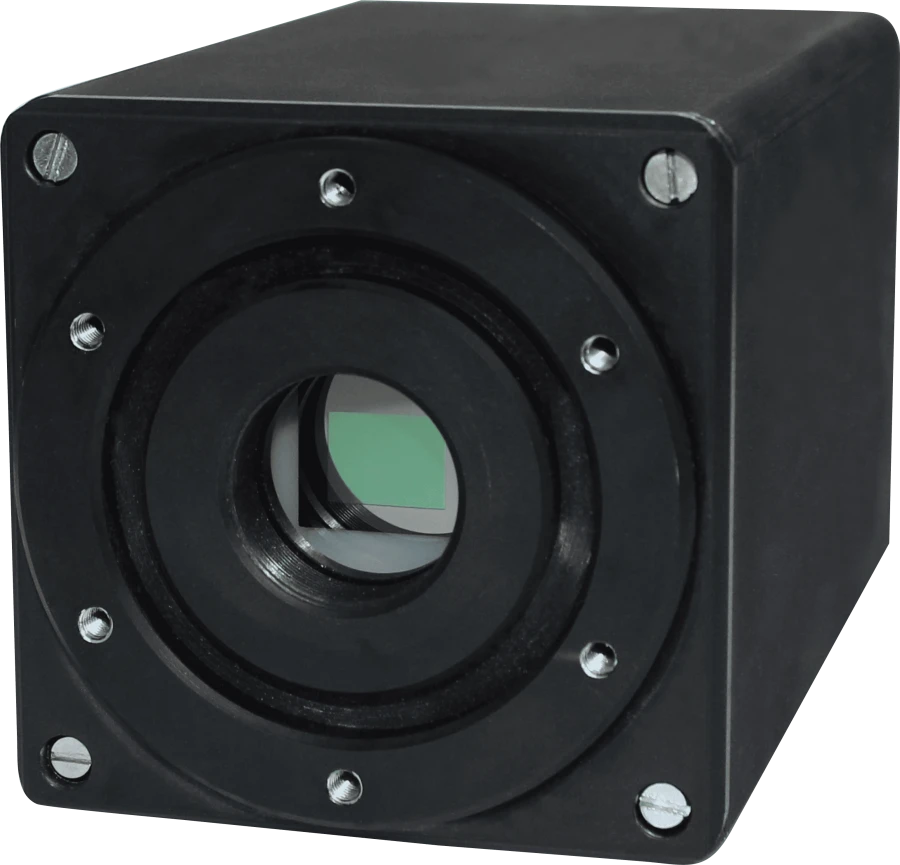

Universal Television Camera, Model UTK-4

Available for Import

Universal Television Camera UTK-4 for Short-Wave Infrared Applications

Video Recording Equipment

Manufacturer: Electron OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The UTK-4 modification (without lens) is a camera in the short-wave infrared region of the spectrum, including power supplies and electronics for signal processing, based on a hybrid TV device. The hybrid TV device for the short-wave infrared (SWIR) range uses a photocathode with a pulling electric field (TE-photocathode) based on InP/InGaAs heterostructure, which provides high sensitivity in the range of 0.951.65 µm. This gives a significant (several times) increase in the range of action possible due to the transition to the range of the spectrum up to 1.65 ?m.The use of this sensor with laser illumination will provide observation of the image with high resolution, as well as detection and identification of the object at a distance of up to 20 km.

This is 3-3.5 times more than the best "mid- and far-infrared range" surveillance systems. There is also the possibility of observing objects at a given distance with different depth of observation (mode "gated viewing").

Specifications

Weight

800 year

Supply voltage, V

12, 27

Dimensions (without lens), mm

80x80x161

Frame rate, Hz

Mini USB 2.0

Pixel size, µm

17x34

Size of photosensitive area, mm

13,1?9,8

Number of pixels of CCD ECH matrix

768?580 (290)

Strobe rise/fall time

SBVVBG

Width of high-voltage strobe, not less than

100

Signal gain at 2 kV

200

Voltage on photocathode, not more than

2 kV

Quantum yield at wavelength 1.55 µm

15...25 %

Dark current, nA/cm^2, max.

100

Threshold irradiance, W/cm^2

5*10^(-10)

Spectral sensitivity range

950...1650

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
