Universal Thermoelectric Cable KRUEL-TK-(E)R(E)(B,K,S)-(z)-ng(A)-LS

Available for Import

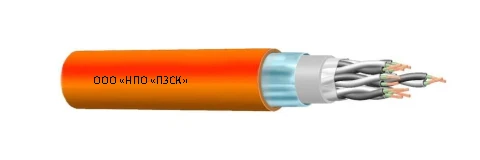

Universal Thermoelectric Cable KRUEL-TK for Non-Combustible Applications

Control and Signal Cables

Manufacturer: LLC "NPO "PZSK"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Cable thermoelectrode universal KRUEL-TK-(E)Pc(E)(B,K,S)-(h)-ng(A)-FRHF Control and monitoring cable KRUEL-IK-(E)V(E)(B,K,S)-(h)-ng(A)-LSLTx

Description

Thermoelectrode universal cable not spreading combustion, with reduced smoke and gas emission, with cores of metal and alloy or alloy pairs, with the number of cores or pairs 1 to 40, nominal cross-section of cores from 0,2 to 4,0 mm2, with insulation of silicone heat-resistant rubber, shielded or unshielded, armoured or unarmoured, not spreading combustion, for rated voltage up to 500 V, designed to connect thermoelectric converters (thermocouples) to the means of temperature measurement or elongation of the electrodes of thermoelectric converters (thermocouples) and connecting them with measuring and other devices, as well as for the manufacture of thermocouples for use in AC networks.

Specifications

Insulation material

Silicone heat resistant rubber (P)

Nominal voltage

500 V

Number of conductive cores, pairs, triples, quadruples

1-40

Nominal cross-section of conductive cores

0.2...4 mm²

Presence of individual and/or shared metal shielding

No screen, screen made of aluminofoil composite material with contact conductor (E), made of copper wires (EM), tinned copper wires (EL), nickel-plated copper wires (N), combined, made of aluminofoil composite mat

Availability of reservations

No armor, armor made of galvanized steel bands (B), galvanized steel wires (K), galvanized steel wires over outer sheath (Kg), stainless steel wires (Kn), stainless steel wires over outer sheath (Kng),

Outer sheath material

according to cable version

Fire hazard class

P1b.8.2.2.2.2.

Cable cross-sectional shape

Round

Design of conductive cores

Multi-wire round, single wire round (ok)

Operational design

M, UV, Tc (Tc125, Tc200), X, Y, PUR

Climatic version

UHL, UHL1, CHL, CHL1, AHL, M, OHM, TM, T

Ambient temperature during cable operation

-60...80 °C

Core material

Chromel-Alumel (CA), Chromel-Copel (CC), Chromel-Constantan (CCn), Copper-Copel (MC), Copper-Constantan (MCn), Copper-TP (CTP), Iron-Constantan (ICn), Nichrosil-Nisil (NxNisil)

Number of pairs

1...40 pcs

Core diameter

0.56...2.62 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
