Vacuum Chamber Resistance Furnace PSVG for Thermovacuum Applications
Manufacturer:
GKMP LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Vacuum chamber resistance furnace PSVG is designed for carrying out thermovacuum technological processes of products at a maximum temperature of 1150 ºC.
Field of application: production of products of electronic industry, instrumentation, mechanical engineering, scientific research.

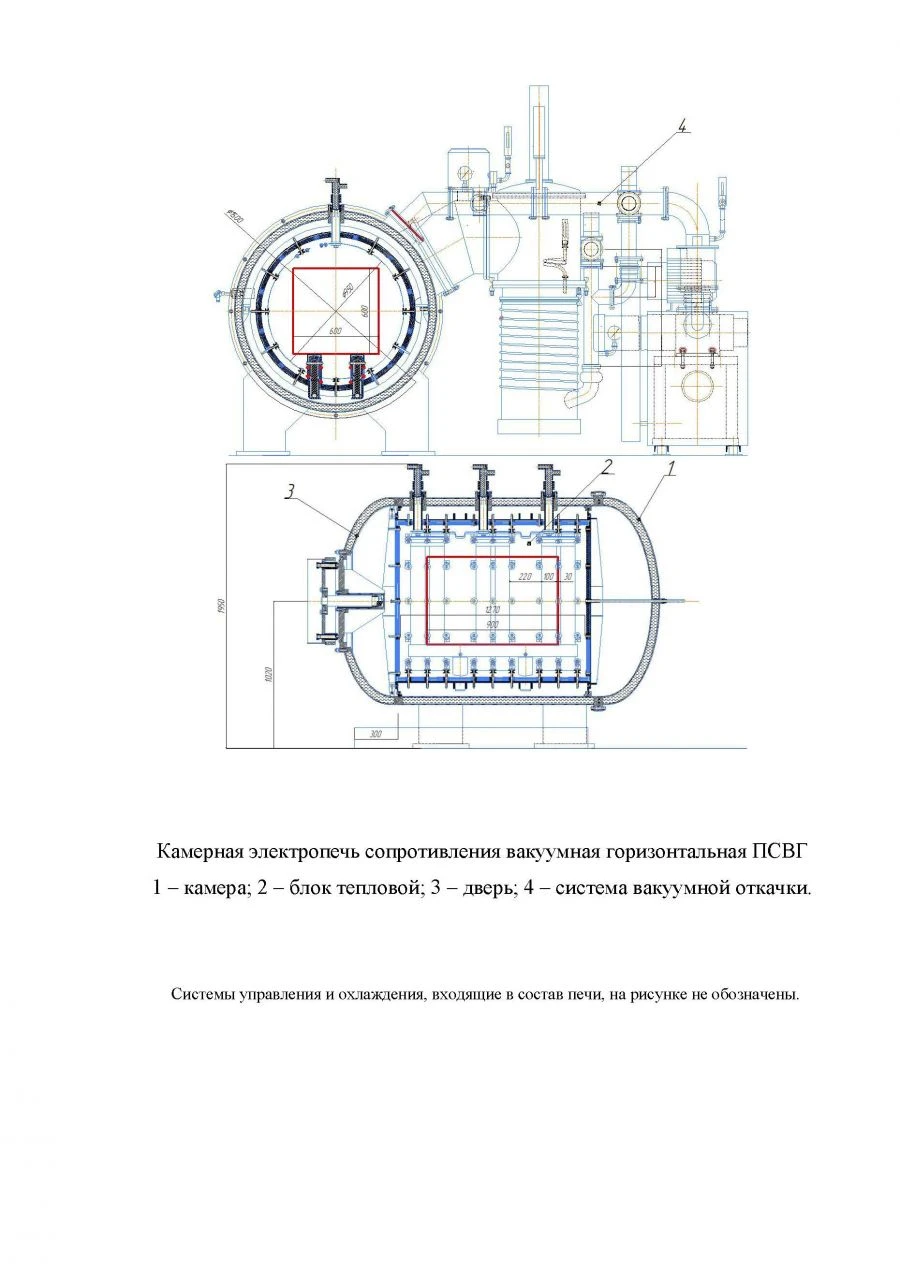

The furnace is a cylindrical water-cooled housing of horizontal arrangement with a door, inside of which the heater and the technological table are located.
Field of application: production of products of electronic industry, instrumentation, mechanical engineering, scientific research.
The furnace is a cylindrical water-cooled housing of horizontal arrangement with a door, inside of which the heater and the technological table are located.
Specifications
Type of product according to PP RF 616
Electric resistance furnaces
Mark
PSVG
Model
PSVG
Power
83 kW
Power of heating element, not less/not more
66/70 kW
Installed power, no less/no more
82,5/85 kW
Rated current frequency:
SBVVBG
Rated supply voltage
380 V
Vacuuming time, not more
60
Weight of the cage, not less:
200 kg
Number of independent heating zones, no less than
1
Accuracy of temperature maintenance in steady-state mode, not more:
±5 °C
Uniformity of temperature maintenance in the working space in steady-state mode in the temperature range from 600 to 1150 °C, n
±10 °C
Medium in the working space: - during heating and isothermal holding ; - during cooling
Vacuum
Weight (excluding chiller weight), not less/not more
4850/5000 mm
External overall dimensions, max.
width - 4050, length - 2735, height - 3250 mm
Overall dimensions of the working space, not less:
width - 400; length - 600; height - 400. mm
Maximum residual pressure at maximum temperature after pre-degassing of the heating module, not exceeding
1,33*10-3(1*10-5)
Maximum temperature, not less than
1150 °C
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
