Available for Import

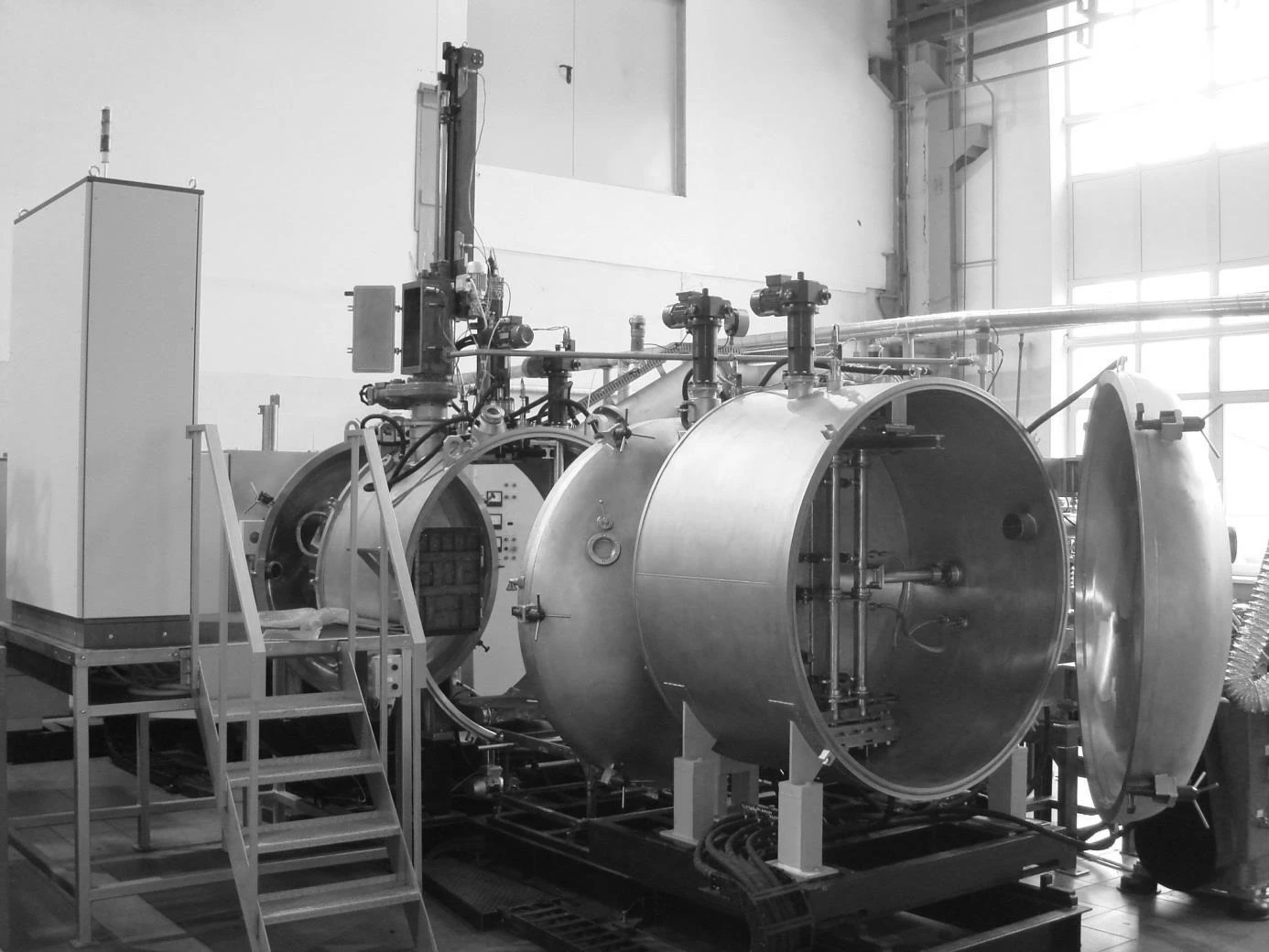

Vacuum Melting Furnace for Blade Casting with Directional and Monocrystalline Structure UVMK9A
Manufacturer:
National Research Center "Kurchatov Institute" - VIAM
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Machines foundry for metallurgical production
Specifications
Installed power
470 kW
Working medium in melting chamber: vacuum, Pa (mmHg)
6,66х10^-1 (5х10^-3)
Working medium in the melting chamber: inert gas-argon, Pa (mmHg)
2?10^4 (150)
Volume of crucible
15 kg
Maximum temperature: metal in crucible, (when using a packed crucible)
1700 °C
Maximum temperature: electric furnace for heating moulds, (in argon medium)
1700 °C
Maximum dimensions of the mould heating furnace working space (length x width x height)
260x130x350 mm
Vertical travelling speed of mould: working stroke, mm/min
3...50
Vertical mold travel speed: reverse stroke, mm/min
Flat grinder, Specialised grinder
Horizontal mould movement speed, mm/min
1500
Aluminium temperature in the mould
700...800 °C
Weight of aluminium in crystallizer
80 kg
Capacity of the plant, blades per day, up to
120 pcs
Overall dimensions of the installation (length x width x height)
7500x5600x4500 mm
Occupied area
not more than 47
Total weight of the machine
not more than 14000 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
