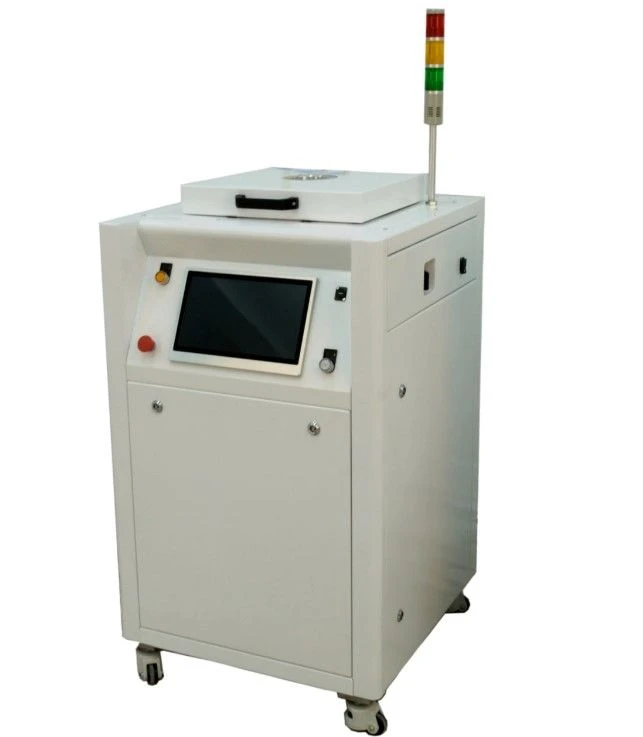

Available for ImportVacuum Soldering Furnace R160C for Defect-Free Metal-Ceramic Sealing
Manufacturer:SAVTEK LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Installation of vacuum defect-free soldering in protective gas environment. It is intended for sealing of metal-ceramic housings of all types by vacuum soldering, mounting of crystals on solders and pastes in hybrid microassemblies, products of power electronics, LEDs, MEMS
Specifications
Width
800 mm
Length
798 mm
Rated power
13 kW
Power supply voltage
380 V
Mains frequency
SBVVBG
Working chamber material
Aluminum alloy
Weight
400 kg
Viewing window
1 pcs
Viewing window diameter
Flat grinder, Specialised grinder mm
Heating type
Heated copper table
Working area width
160 mm
Working area length
160 mm
Maximum heating temperature
450 °C
Number of thermocouples for temperature control
2 pcs
Heating rate
180 C/min
Cooling rate
250 C/min
Vacuum limit of the integrated volute pump
1
Vacuum pumping system
Oil-free
Vacuum pump capacity
10 cubic metres per hour
HCOOH (formic acid) vaporizer
In stock
Volume of the UNFU barbiter
300
Gas supply lines equipped with digital PWGs
2 pcs
Residual pressure with high vacuum pumping option
0.001 Pascal
Maximum pressure inside the working chamber
1,5 Бар
Maximum pressure with option
4 Bar.
Additional gas supply line
4 pcs. (optional)
Optional top IR heating
Option
Flux trap
Option
Number of recipes in the program
1000 pcs
Separation of management rights
In stock
Remote control via Wi-Fi from an Android device
Option
Soft pumping
Option
Uninterruptible power supply
Option
Height for version M
1245 mm
Height for version L
1296 mm
Height for version L with top IR heating option
1322 mm
Product loading height for version M
SBVVBG mm
Product loading height for version L
100 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
