Versatile Cargo Trailer for Long Loads - Model 843432 for All Roads

Heavy Duty Trailers

Manufacturer: NOVOSIBARZ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

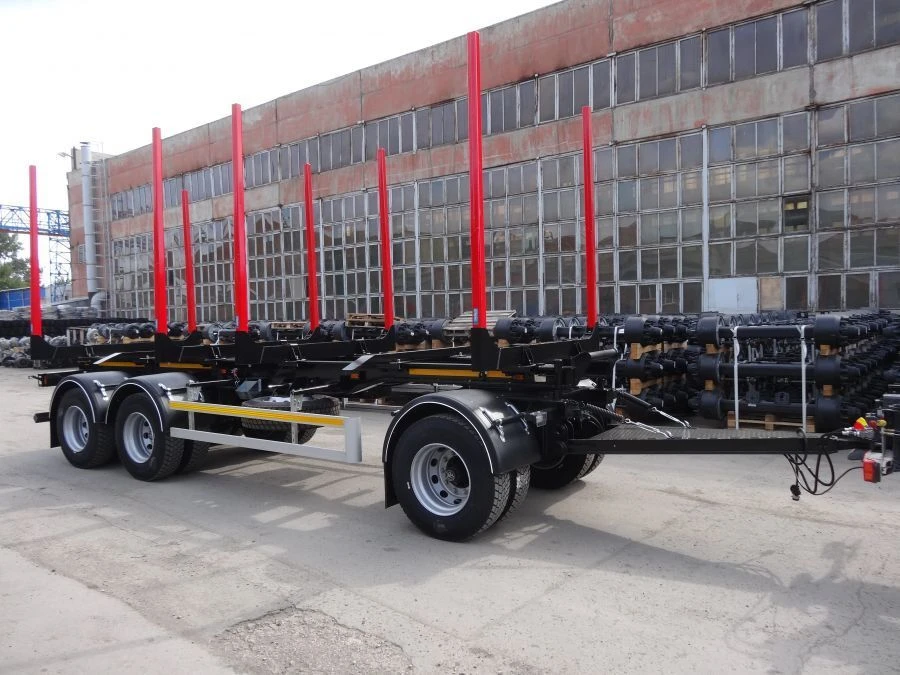

Trailer 843432 (loading space design - load-bearing frame, cones)

Description

The trucks are designed for carriage of various cargoes, including assortment and other long cargoes on roads of all categories. They are equipped with container locks for the carriage of containers of various types, including tank containers. Technically permissible maximum weight of the vehicle is 33000-39000 kg.

Loading space - load-bearing frame with or without all-metal open platform, with or without length-sliding cones, with or without width-sliding cones. Drawbar with a coupling loop with a diameter of 50 mm or 57.5 mm. Axles 12 tonnes manufactured by Plant Ltd.

Tyres 11R22,5; 12,00R20; 14,00R20; 275/70R22,5; 295/80R22,5; 315/60R22,5; 315/70R22,5; 315/80 R22,5; 385/55R22,5; 385/65R22,5 produced by JSC "Kordiant"/ LLC "Nizhnekamsk Tyre Plant CMK"/ LLC "Nortek"/JSC "Omskshina". Wheel discs manufactured by Accurayd Wheels Russia LLC / PJSC ChKPZ. Receiver manufactured by OOO TD Avtotechnology.

Lighting equipment manufactured by OOO "Atlanta". Floor level crane manufactured by VBK Vostok Ltd.

Specifications

Type of trailer

Sorting truck; container truck; flatbed truck

Maximum height

4300 mm

Width

2550...3300 mm

Maximum length

15000 mm

Axle load capacity

11...13 t

Base machine type

truck

Rear track

2000...2050 mm

Front track

2000...2050 mm

Number of axles

3 pcs

Base

3200...8500+1300...2050

Vehicle kerb weight

5000...14000 kg

Technically permissible maximum mass of the vehicle

36000...39000 kg

Scope of application

Designed for transportation of various cargoes, including assorted and other long cargoes, containers of various types, including tank containers on roads of all categories of the general road network.

Reliability parameters

Average service life before the first major overhaul under the first category of operating conditions in compliance with all operating and maintenance rules specified in the operating manual - not less than 100,000 km; MTBF under the first category of cond

Warranty period

B1/B8 2100/900 MHz

Ergonomic parameters

Paintwork coatings used on the exterior surfaces of trailers may be painted or repainted with natural drying paints; the forces required to lift the spare wheel do not exceed 500 N (50 kgf). When using mechanisms

Climatic version

UHL

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
