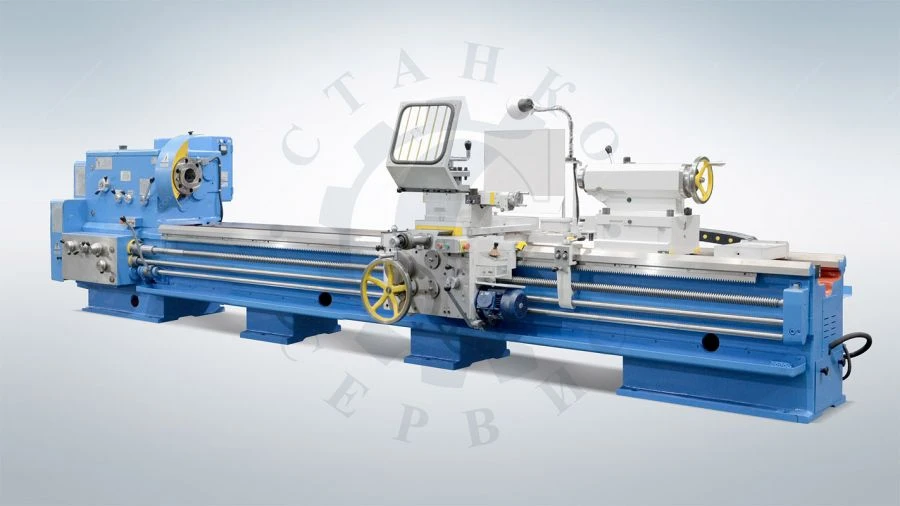

Versatile Lathe Machine 16K40-8 for Precision Work

Available for Import

Versatile Lathe Machine 16K40-8 for Precision Turning and Thread Cutting

Manual Metal Lathes

Manufacturer:STANKOSERVIS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Screw-cutting lathe 16K40-10 Screw Centre Lathe 16K40-5

Description

The lathe-cutting machine is designed to perform a variety of turning operations, as well as cutting threads: metric, inch, modular and pitch threads.

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Height

1625 mm

Width

1860 mm

Length

10300 mm

Spindle speed limits

10...1250

Main motion drive power

18.5 kW

Roughness of the cylindrical surface of the sample product after its finish machining

Ra 2.5 µm

Accuracy class according to GOST 8-82

Machine weight together with electrical equipment

11000 kg

Total power of electric motors installed on the machine tool

18.72 kW

Largest diameter of the workpiece to be mounted above the bed

840 mm

Maximum torque on the headstock spindle

3.0 kNm

Highest cutting force Pz

3000

Speed of rapid transverse movements of the slide

2000 mm/min

Speed of rapid longitudinal movements of the caliper

5200 mm/min

Step limits for machinable pitch threads

112-0.5 pitch diametral

Step limits for machinable modular threads

0.25-56 module

Step limits for machinable inch threads

28-0.25 threads per 1 inch.

Step limits for machinable metric threads

1...224 mm

Longest longitudinal length of the slide stroke

7850 mm

Longest workpiece length

8000 mm

Largest diameter of the workpiece to be machined above the bed

800 mm

Largest diameter of the workpiece to be mounted and machined above the slide

490 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
