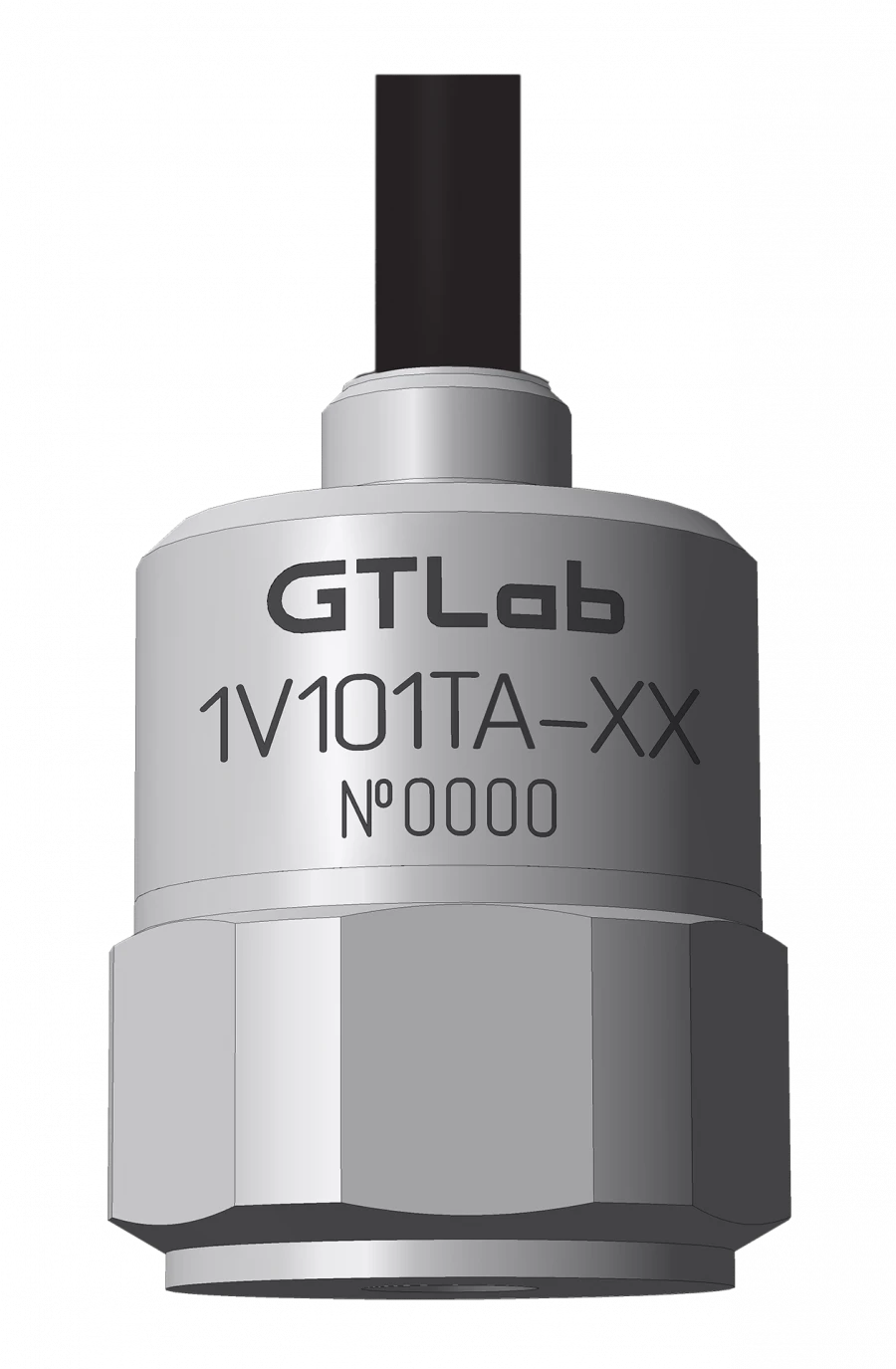

Voltage Output Accelerometer for Vibration and Shock Measurement 1V101TA-500
Manufacturer:
GTLAB LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
Axelerometers with voltage output are electromechanical transducers with increased noise immunity for measurement of vibration and shock accelerations. Acceleration vibration transducers with voltage output for general purpose are designed for measuring parameters of vibration processes (in multichannel systems, modal analysis, analysis in industrial sanitation).
Specifications
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Conversion factor
50 mV/(m-s-2)
Relative transverse conversion ratio
< 5 %
Maximum value of the measured acceleration amplitude
± 100 m/s2
Maximum impact (peak value)
± 25,000 m/s2
Operating temperature range
-55 ... +125 °?
Operating frequency range: ? frequency response irregularity ± 3 dB ? frequency response irregularity ± 1 dB ? frequency respons
0.5 ... 8 000; Hz 1 ... 5 000 Hz; 2 ... 3 000 Hz
Natural frequency in fixed state
> 15 kHz
Noise level, RMS (1 Hz ÷ 10 kHz)
< 0.0005 m/s2
Output impedance
< 100 ohms
Power supply: voltage; current
+ (18 ... 30) V; 2 ... 20 mA
DC output voltage level
10 ... 13 ?
Housing material
stainless steel
Coefficient of influence of ambient temperature
± 0,2%/ °?
Time to establish operating mode
4 ?
Weight (without cable)
42 ?
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
