Wall-Mounted Mini Studio for High-Quality Communication MCR.N VABM.465287.015

Wall-Mounted Mini Studio for Communication and Dispatch Applications MCR.N VABM.465287.015

Manufacturer:VENTUR-SERVICE LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

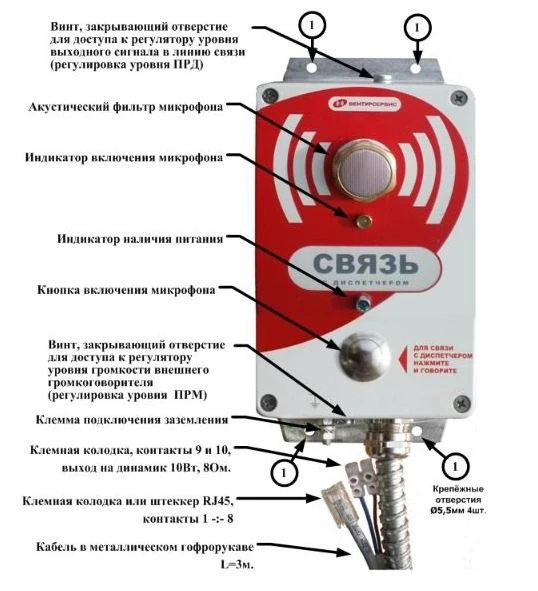

Mini-Studio wall mounted MSR.N VABM.465287.015 is one of the terminal links of the trunk communication equipment of meetings, as well as operational dispatch communication and is designed for high quality reception and transmission of voice information when connected to a four-wire line PM (channels PRM and PRD). The product is made in a metal case resistant to external mechanical and climatic influences. It is allowed to operate the product in the open space, as well as in production rooms and shops of enterprises with severe climatic conditions - low, high temperature, high humidity, dustiness.

It is not allowed to operate the product in the presence in the atmosphere of aggressive and explosive compounds and their vapours, as well as sea fog.

Specifications

Maximum power consumption
22 W
DC supply voltage
12V to 24V
Communication line
4-wire
Entry and exit
Symmetrical, R=600 Ohm
Nominal PPM levels
-13/0 dB
Nominal levels of PDPs
-13 / +4.3 dB
Maximum output power at Up=24V, Rn=8 Ohm
9 W
Maximum output power at Up=12V, Rn=8 Ohm
4 W
Level adjustments: by reception
-60...0 dB
Level adjustments: by gear
-13 ... +4.3 dB
-13...+4,3 dB
microphone dry contact on terminal block
Contact characteristics: maximum switching current
1?
Contact characteristics: maximum switching voltage
100?
Overall dimensions (without connection cables)
200x100x65mm
Execution
IP63
Product composition
1. Mini wall-mounted studio MSR.N VABM.465287.015; 2. It is possible to equip the product with acoustic systems of horn, wall, ceiling or protected version*; 3. It is possible to supply a power supply unit for this product or for the whole c

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
