Wall-Mounted Reinforced Distribution Cabinet 6U 530x300x300 Available for Import

Wall-Mounted Reinforced Distribution Cabinet 6U for Secure Telecommunications

Telecom Equipment Components
Manufacturer: STR-TELECOM LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

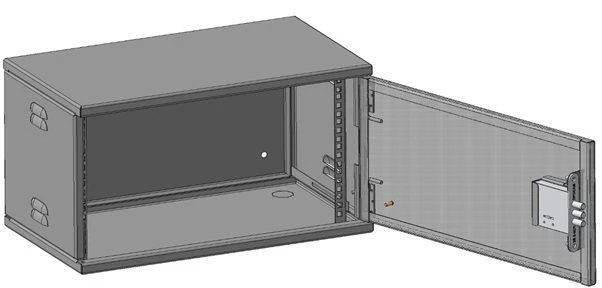

????-6Ux530x300x300. Wall-mounted distribution cabinet reinforced, size 19" - 6U, overall dimensions ????????=530x300x300. The product is a wall-mounted vandal-proof telecommunication cabinet designed to accommodate equipment of subscriber access node, as well as other active telecommunication equipment or in-house technical means of security systems, control and management of engineering equipment and resource consumption metering. The product is located in the entrances of houses, other technical and non-residential premises of small area.

Specifications

Type of accommodation
indoor hinged
Device type
Reinforced wall-mounted distribution cabinet
Height/story (unit)
6
Depth
300 mm
Protection class
IP31
Weight
20 kg
Height
300 mm
Width
530 mm
Availability of fasteners to the support (pole)
Armoured glass
Type of accommodation
In the room for surface mounting
Type of construction
All-welded
Height , U
6
Usable depth
300 mm
First characteristic digit of the degree of protection designation
3
Second characteristic digit of the degree of protection designation
1
Type of floor support
no
Type of coloring
Powder
RAL color
7035
Material
Cold-rolled steel
Material thickness
1.5 mm
Upper limit of operating temperature
40 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
