Wall-Mounted Reinforced Distribution Cabinet SHRNU-M-400x400x150 for Telecom Applications

Telecom Equipment Components

Manufacturer: STR-TELECOM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

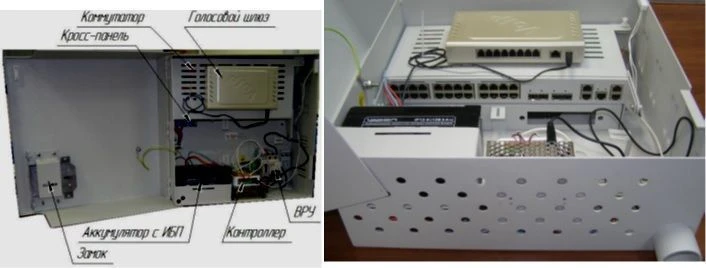

????-?-400?400?150. Wall-mounted distribution cabinet reinforced, overall dimensions ????????= 400?400?150. The product is a wall-mounted vandal-proof telecommunication cabinet designed to accommodate active telecommunication equipment or in-house technical means of security systems, control and management of engineering equipment and resource consumption metering.

The product is located in entrances of houses, other technical and non-residential premises of small area. The enclosure is made of 2 mm thick steel in vandal-proof version as a one-piece welded construction and painted with light grey powder paint (RAL 7035). The cabinet door is made of 2 mm thick steel.

The locking mechanism ensures reliable locking of the door. The lock is additionally reinforced with a plate that prevents the lock from being knocked out.

Specifications

Type of accommodation

indoor hinged

Operating temperature range

0...40 °C

Device type

Reinforced wall-mounted distribution cabinet

Form factor (rack-mounted, freestanding)

freestanding

Depth

150 mm

Protection class

IP31

Weight

15 kg

Height

400 mm

Width

400 mm

Availability of fasteners to the support (pole)

Armoured glass

Type of accommodation

In the room for surface mounting

Type of construction

All-welded

Usable depth

150 mm

First characteristic digit of the degree of protection designation

Second characteristic digit of the degree of protection designation

Type of floor support

Type of coloring

Powder

RAL color

7035

Material

Cold-rolled steel

Material thickness

2 mm

Upper limit of operating temperature

40 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
