Weather Control Panel TDC-17-M for Aviation Navigation and Equipment Control

Aircraft Spare Parts

Manufacturer: RPKB OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

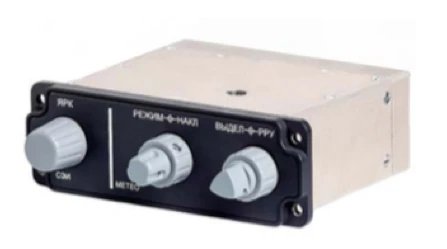

The TDC-17M control panel as part of the helicopter flight equipment complex controls the brightness of interfacing equipment and onboard meteonavigational radar station.
Functions of the control panel when working with meteonavigational radar station:
- control of station gain and separation factor;
control of the antenna tilt angle;
- switching of the station operation modes.

Specifications

Electricity supply

18.0 to 31.5 B

Continuous operation time

at least 15 h

Standby time after power on or power failure

no more than 2 seconds

Equipment

The TDS-17M remote control can be equipped with white or green illumination (adaptable for night vision goggles) and engraving in English or Russian.Taking into account the horizontal or vertical positioning of the remote control, the engraving on the fron

Failure rates

- Average MTBF in flight: at least 10,000 hrs - Average MTBF and damage: at least 5,000 hrs

Dimensions

146×48×154,3 mm

Weight

0.70 ±0.07 kg

Information exchange channels

ARINC 429 (2 inputs / 1 output) RS 232 (process channel) RK (4 inputs / 3 outputs)

WSF categories according to KT-160D

KT/160D VVF. [V4/A4]HVAV[GU/(BA) (B1A)]XXXDFSZAAZZ[RR]M[A2C22]XXA

Operating temperature range

-40 °C to +55 °C

Power consumed from the "27 V" power supply network

No more than 8 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
