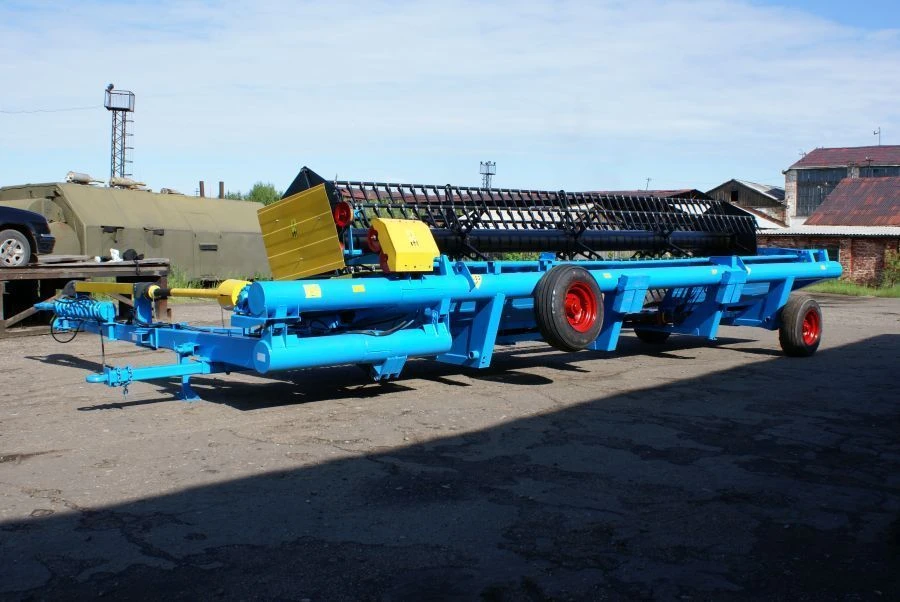

Wide-Header Trailed Reaper JVP-9.1 for Efficient Harvesting

Available for Import

Wide-Header Trailed Reaper JVP-9.1 for Efficient Grain Harvesting

Crop Harvesting Machines

Manufacturer: KMZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Trailed swath cutterbar ZhVP-7,1

Description

Wide-capture swath cutterbars ZhVP-9, 1 are designed for mowing and laying in swath of grain ear crops at separate harvesting. The cutterbars are produced with a working width of 9, 1 metres. They are equipped with the original cutting system "Schumacher". The drive is guaranteed for 4 years. Aggregated with tractors of 1, 4 kn class. Reduction of fuel and lubricant consumption by 2, 5 times.

Specifications

Working width

9...9.1 m

Height

1660 mm

Width

10820 mm

Length

4860 mm

Weight

2300 kg

Type of product according to PP RF 616

Machines for harvesting cereals, oilseeds, pulses and cereal crops other

Type

Trailed roller

Type of cutting unit

Segment-finger of normal cutting

Reel type

Five-bladed with straight blades; Universal six-bladed eccentric blades

Productivity: basic time; shift time; operating time

6.5;5;5

Grain losses after the cutterbar

0.5 %

Set cutting height

80...250 mm

Operating speed

Transport speed

Number of service personnel

Reel shaft speed

28...50

Reel diameter

1380 mm

Number of conveyors

2 pcs

Conveyor width

750 mm

Number of belts in the conveyor

5 pcs

Window location

Central

Width of ejection window

1250 mm

Pacing of fingers and segments

76.2 mm

Knife drive

Planetary gearbox PRO DRIVE 85MVv GKF RS

Knife stroke

85 mm

Number of support wheels

3 pcs

Wheel type, size

Pneumatic with tyres, TVL-2 10,0/75-15,3 or Ya387-1 6.50-16

Minimum turning radius of the machine : at the outermost outside point (outside); in the outer wheel track (inside)

8 m

Number of gears: belt; chain; cardan; gearboxes

5 pcs

Number of lubrication points, total including: daily; periodic; seasonal

2;7;30

Overall dimensions in working position (without tractor): length; width; height

4860 mm

Cutterbar weight (dry)

2300 kg

Overall dimensions of the cutterbar in transport position (when driving on public roads): length; width; height

9850 mm

Ground clearance

315 mm

Average MTBF

Installed life

1600

Average service life

8 year

Maximum force of resistance to movement of regulating elements: when regulating horizontal reel position; at n

200

Specific fuel consumption

1.5

Operational labor intensity of assembly (reassembly) of the product at the place of use

Operational labor intensity of transfer to and from transport position

0.55

Operational-technological coefficients: technological service; reliability of technological process; use of

Knife oscillation frequency

600

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
