Z-5R Access Control System Controller (Relay Wiegand Model)

Available for Import

Z-5R Access Control System Controller for Secure Access Management

Security and Fire Control Panels

Manufacturer: ABC LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

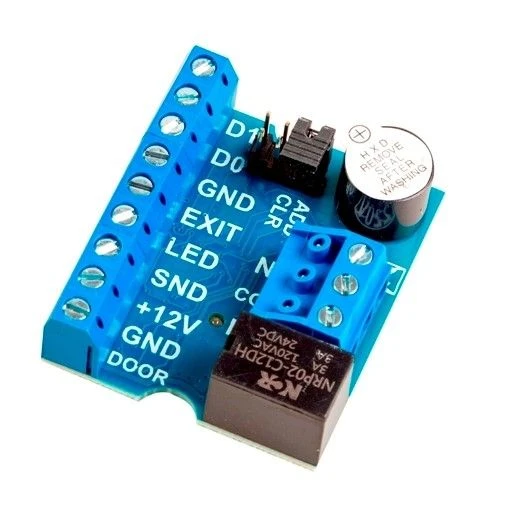

Controller Z-5R (mod. Relay Wiegand) is designed for use in access control and management systems (ACS) as a stand-alone controller with a power relay at the output to control external devices. As input devices it is possible to connect a Dallas Touch Memory key contactor (DS1990A keys) or a proximity card reader emulating iButton (Dallas Touch Memory) or Wiegand protocols (26-42 bits). The controller allows you to connect the following equipment: <ul> <li>- external proximity card reader or contactor;</li> <li>electromagnetic or electromechanical lock;</li> <li>lock opening button (normally open);</li> <li>external control of the reader LED;</li> <li>external control of the reader buzzer;</li> <li>door position sensor.</li> </ul>

Specifications

Protocol for connecting an external reader (contactor)

iButton (Dallas Touch Memory), Wiegand-26 ... 42

Card/key memory

1364 pcs

DS1996L Key Support

availability

Sound/light indication

Buzzer signal, LED

External LED and external buzzer control

availability

Output for lock connection

Relay (type 1C)

Switching current (24V DC/120V AC)

3 A

Setting the duration of lock opening

from 0 sec to 220 sec (factory value is 3 sec)

DC supply voltage

9...24 V

Current consumption

45 mA

Overall dimensions

46x36x15 mm

Weight

26 year

Ambient temperature

-40°C to +50°C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
