16-Channel Relay Switch for CVBS, 3G/HD/SD-SDI and DVB-ASI - SW-1622HDE

Available for Import

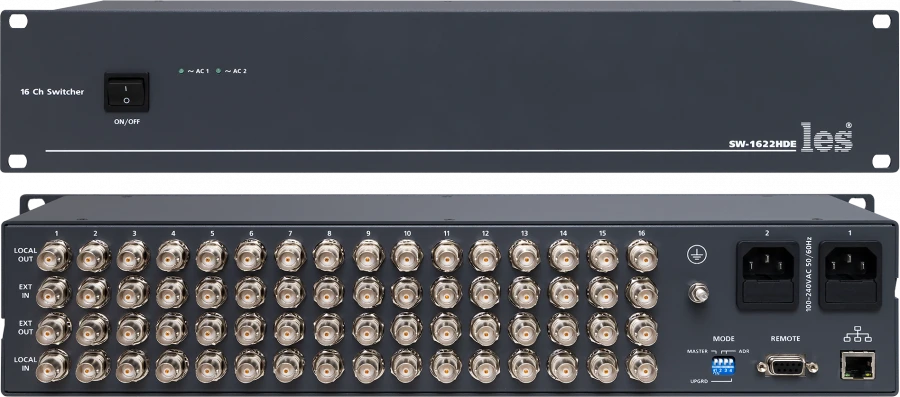

16-Channel Relay Switch for CVBS, 3G/HD/SD-SDI and DVB-ASI Applications

Standalone Communication Devices

Manufacturer: LES-TV LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The relay switch is designed to provide controlled bypass of 16 independent paths for signals up to 5 GHz (PAL, SECAM, 3G/HD/SD-SDI, DVB-ASI). It can manage a group of 1 to 4 similar (SW-1622HDE) slave switches. The slaves are connected to the master via RS-485 interface.

Setting the "Master" or "Slave" mode is done by means of a DIP-switch. The master switch has a non-volatile memory to restore the configuration after power off. Control is performed via Ethernet or external GPI signal.

The switch has 2 power supplies.

Specifications

Number of inputs per channel

2 pcs

Number of outputs per channel

2 pcs

Switched Signal Standard

CVBS, 3G/HD/SD-SDI, DVB-ASI

Transmission coefficient up to 150 MHz

0...0.05

Transmission coefficient from 150 MHz to 3 GHz

0.05...2

Transient attenuation at 600 MHz, not less than

Time of commutation recovery in case of power failure, not more than

Switching time (duration of contact bounce), max.

Connector type

BNC

Supported Ethernet standard

100 Base-TX/10 Base-T

Ethernet connector type

RJ-45

Number of GPI signal inputs

1 pcs

Number of GPI signal outputs

1 pcs

Connector type for GPI signals

DB9 female

GPI input/output signal type

level

Ethernet control

Web interface, proprietary protocol

Control from third-party equipment

GPI signals

Power supply voltage

100...240 V

Power consumption, max.

10 W

Number of power supplies

2 pcs

Operating temperature range

5...40 °C

Overall dimensions (W - H - D)

483...88 mm

Weight

4 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
