2-in-1 Relay Switch for HD/SD-SDI and CVBS Video - SW-21VAS2-REL

Available for Import

2-in-1 Relay Switch for HD/SD-SDI and CVBS Video Applications - SW-21VAS2-REL

Standalone Communication Devices

Manufacturer: LES-TV LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

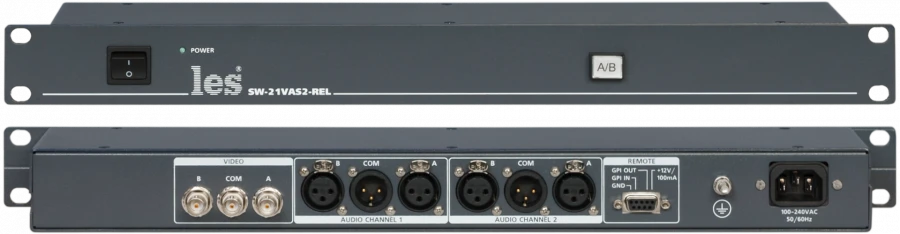

Designed for relay switching of two composite analogue or HD/SD-SDI video and symmetrical stereo audio signals. Performs parallel switching of two input video signals into one output signal and two symmetrical stereo audio signals into one output signal. Can be controlled either by front panel button or by remote control channel. Direct relay bypass from the "Main" input to output 1 in case of power failure. Metal housing with the possibility of mounting in a 19" telecoms rack.

Specifications

Number of video inputs

2 pcs

Number of stereo audio inputs

2 pcs

Number of video outputs

1 pcs

Number of stereo audio outputs

1 pcs

Video signal format

HD/SD-SDI, CVBS

View of video signal path

open, with common ground

Rated transmission coefficient of the video path

Transient attenuation between input channels at 1.0 GHz, not worse

Type of video path connectors

BNC

Audio signal format

symmetrical

Type of audio path

????????????????

Maximum permissible level of input in-phase audio signals

100 V

Transient attenuation between any pair of audio channels at 10 kHz, not worse

105

Type of audio input connectors

3-pin XLR female

Type of audio input connectors

3-pin XLR male

Switching torque

asynchronous

Power supply voltage

100...240 V

Power consumption

10 W

Overall dimensions (W-W-H)

483...44 mm

Weight

1.7 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
