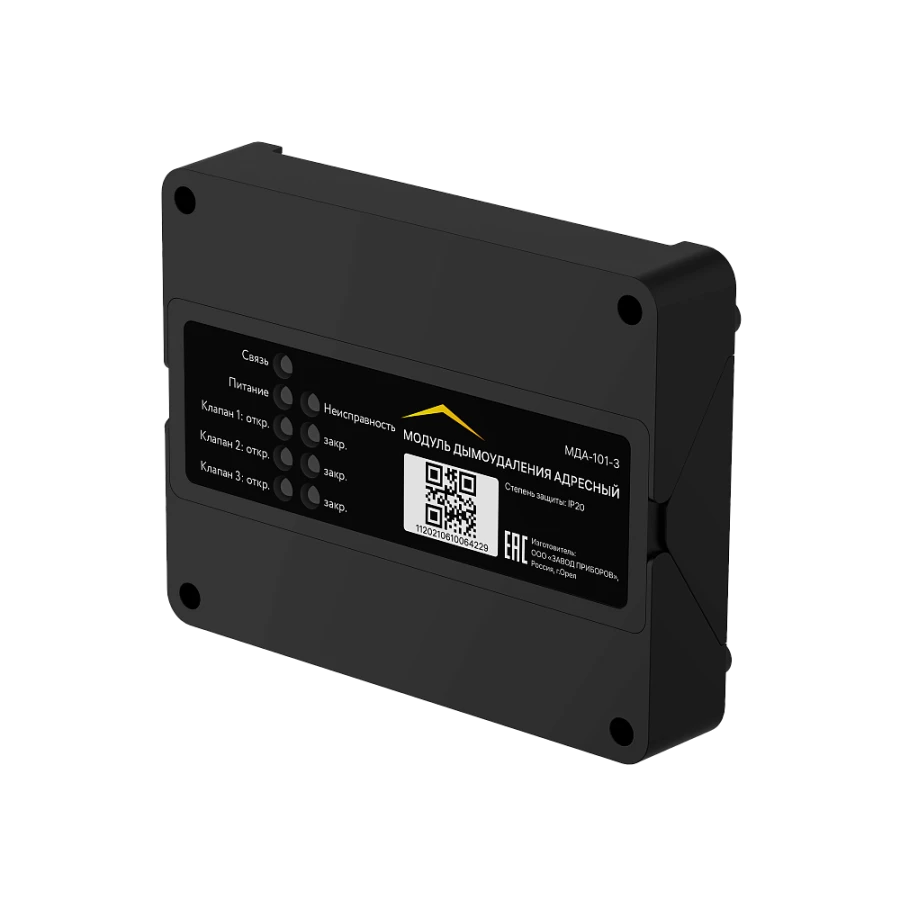

Addressable Combined Smoke Removal Module MDA-101-3 "RUBETEK

Available for Import

Addressable Combined Smoke Removal Module MDA-101-3 for Effective Fire Protection

Fire Safety Devices

Manufacturer: RUBETEK RUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Addressable combined smoke exhaust module MDA-101-1 "RUBETEK" Addressable combined smoke exhaust module MDA-101-2 "RUBETEK"

Description

MDA is designed for controlling electromechanical actuator with return spring, or electromechanical reversible actuator, or electromagnetic actuator with manual return, which are used on dampers of smoke exhaust damper or fire damper. MDA is designed for indoor installation, in places protected from atmospheric precipitation, aggressive media and dust, as well as in especially explosion and fire hazardous premises.

Specifications

Power supply from a DC source with voltage

24 V

Power supply from AC mains with frequency (50±1) Hz voltage

230 V

Probability of failure-free operation in 1000 h

0.98

Average MTBF

60000

Average service life

10 year

Weight, not more

270 year

Dimensions (L x W x H), mm

160x125x36

Degree of enclosure protection

IP20

Relative humidity at + 40 deg. ?

0...93 %

Operating temperature range

-25...55 °C

Number of devices connected to one PLC, max.

SBVVBG pcs

Availability of built-in PLC isolator

Got it

Tamper switch (tamper switch)

Got it

Monitoring of power lines for open circuits and short circuits

Got it

Number of remote control valves, OPC valves controlled by the module

3 pcs

Types of valves to be connected

Electromagnetic; reversible; with return spring

Maximum switchable current of remote control and OPC valves

2 A

Switching current at voltage 230 V, not more than

1.5 A

Switching current at voltage 24 V, not more than

1.5 A

Current consumption of the executive part from external power supply at switching 230 V

0.02 A

Current consumption of the executive part from the external power supply when switching 24 V

0.07 A

Average current consumption from the PLC

0.00093 A

Peak current consumption from the PLC

0.006 A

Number of address slots occupied

1 pcs

Communication interface

PLS.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
