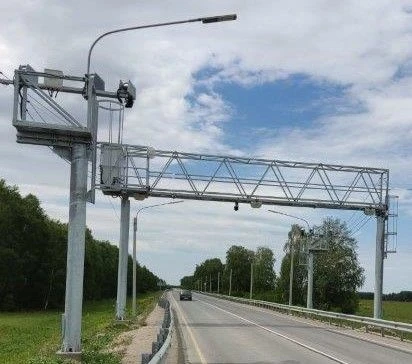

Automatic Weight and Dimension Control Station for Vehicles in Motion (APVGC ITS) - Ensure Compliance and Safety

Movement Measurement Devices

Manufacturer: ITS-SIBIR LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed to control compliance with the rules of heavy and/or oversized vehicles (hereinafter - HS), to ensure the acquisition and operation of automatic systems of weight and (or) dimensional control of vehicles travelling on public roads; ensuring the organisation of road safety. It is used for: measurement of load on each axle of the vehicle; total mass of the vehicle; number of axles of the vehicle; inter-axle distances of the vehicle; number of wheels (racks) on the axles of the vehicle; dimensional parameters of the vehicle; photofixation and recognition of the state registration number of the vehicle; photofixation of the frontal image of the vehicle; photofixation of the general view of the vehicle (side view) at the moment of passing through the weighing sensors (obtaining an overview photograph of the vehicle, showing its contours and number of axles); transmission to the road owner's data processing centre of the recorded parameters of the vehicle via a communication channel ensuring crypto-protection of the transmitted information

Specifications

Type of product according to PP RF 616

Other tools and instruments for measurement, inspection and testing

Length of lane control area

6 m

Width of the lane control area

4 m

Ambient temperature range at which the operating temperature range of the control cabinet is maintained

-40...70 °C

Operation at relative air humidity, up to

100 %

Voltage

110...242 V

Measuring range of total vehicle mass, kg

From N 1000 to N 20000 and above, where N is the number of axles of the vehicle.

Measuring range of mass per TC axis group, kg

From G X 1000 to G X 20000 and above, where G is the number of TC axes in the group.

Weight per axle of the vehicle

1000...35000 kg

Limits of permissible relative error of total mass of TC measurements

-5...5 %

Limits of permissible relative error of measurements of mass per axis in the TC axis group

-11...11 %

Limits of permissible absolute error of measurement of distance between axes of TCs

-30...30 mm

Measurement ranges of TC width

1.6...5 m

Measurement ranges of TC length

3...32 m

TC height measurement ranges

1.6...5 m

Range of speeds at which the accuracy of measurements of total mass, mass per axle, per axle group, per o

5...140

Limits of permissible absolute error of TC length measurements

-600...600 mm

Tolerance limits of absolute error of TC width measurements

-100...100 mm

Limits of permissible absolute error of TC height measurements

-60...60 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
