BDM-8x4PK Semi-Trailer Disc Harrow - Efficient Soil Processing
All Categories

Categories

Language

Quick Links

WhatsApp Inquiry
BDM-8x4PK Semi-Trailer Disc Harrow for Soil Preparation Available for Import

BDM-8x4PK Semi-Trailer Disc Harrow for Effective Soil Preparation

Disc Harrows
Manufacturer: AGROMEHANIKA LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The BDM 8x4 PC disc harrow is designed for surface tillage to a depth of up to 15 cm, weed killing, chopping and incorporation of crop residues into the soil, sowing and fallow fallow, seedbed cultivation, moisture conservation.

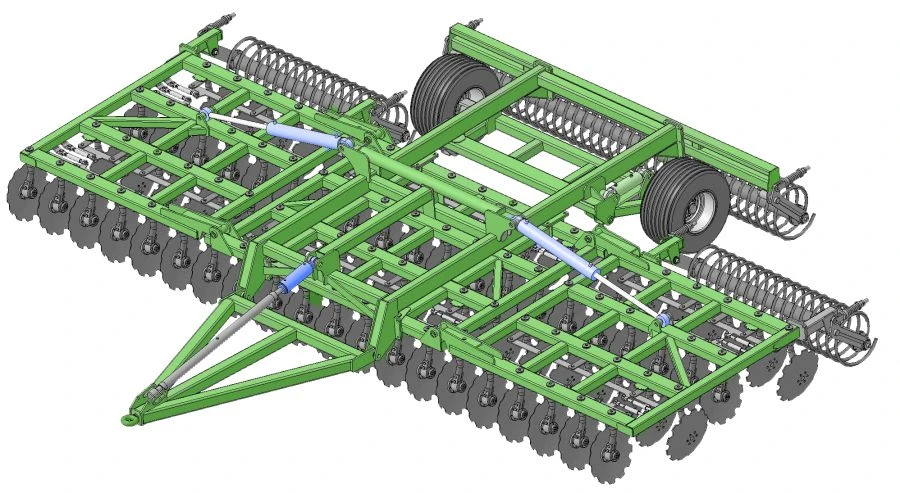

The disc harrow is a semi-mounted disc harrow with 4 rows of discs on individual stands. The working unit is a spherical disc with a diameter of 560 mm, reinforced bearing unit (PM bearing housing), working unit stand with bushing-stand lubrication. A mechanism for setting the angle of attack of each disc row. Completion of the disc harrow with a spiral stub roller allows smooth adjustment of the cultivation depth without changing the angle of attack of the discs.

Specifications

Type of product according to PP RF 616
Disc harrows
Distance between rows
650 mm
Weight
7550 kg
Number of implement rows
4 pcs
Material of working elements
65?
Material of frame structures
09G2S
Harrow type
semi-trailer
Working width
8 m
Height
1200 mm
Width
8000 mm
Length
8000 mm
Operating speed
10
Capacity per hour
9.6
Number of working orans
80 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
