Brake Chamber with Spring Energy Accumulator Type 20/20 100-3519100-70

Available for Import

Brake Chamber with Spring Energy Accumulator Type 20/20 for Effective Braking Systems

Pneumatic Brake Chambers

Manufacturer: ROSSLAVL BRAKE SYSTEMS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Brake chamber with spring energy accumulator type 20/20 100-3519100-80

Description

Brake chamber with spring energy accumulator is designed to actuate braking mechanisms of service, reserve and parking brakes.

Specifications

Assignment

Brake chamber with spring energy accumulator is designed to actuate braking mechanisms of service, reserve and parking brakes.

Equipment

Brake chamber - 1 pc. Transport plug - 2 pcs. Passport- 1 pc. Packing- 1 pc.

Weight

9.87 kg

Disposal information

The procedure for disposal of the product shall be determined by the Consumer.

Manufacturer's warranty

The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.

Storage conditions

The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer

Safety measures

Repairs without special equipment are not permissible. For assembly work, be aware of the inscription on the flange of the spring energy accumulator "CAUTION! SPRING IS UNDER TENSION".

Maintenance of the brake chamber

In accordance with the operating manual of the motor vehicle for which the product is intended to be used

Spring-loaded energy accumulator tripping pressure

0.48...0.54 MPa

Working pressure

0.8 MPa

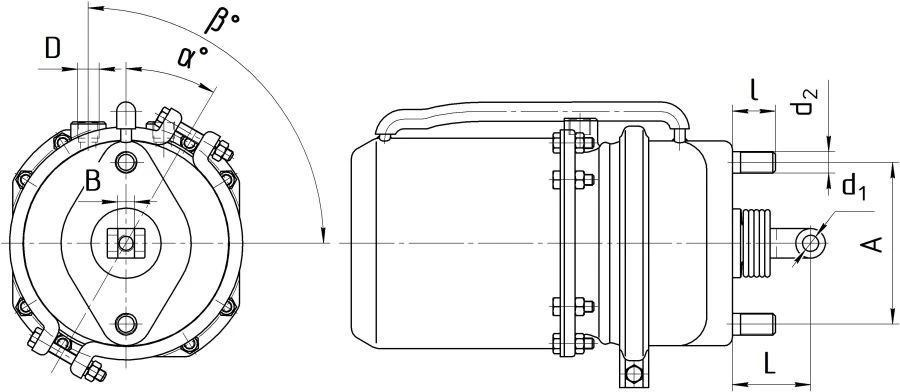

Center distance of the air inlet connections

56 mm

Spring travel of the energy accumulator

67 mm

Diaphragm stroke

57 mm

Outreach of mounting bolts l

32 mm

Connection thread of the mounting bolts d2

16 mm

Width of fork slot B

12.5 mm

Stem outreach L

58 mm

Angle of rotation of the air inlet connections , deg.

Flat grinder, Specialised grinder

Bolt spacing A

120 mm

Diameter of the connection hole in the plug d1

B1/B8 2100/900 MHz mm

Air inlet connection thread D

16 mm

Mechanical brake release unit screw key size

26.67...27 mm

Installing the brake chamber

In accordance with the vehicle manufacturer's documentation

Certificate of Conformity

NO. EAES RU C-RU.MT14.V.00124/19

Clamp installation angle

30...45

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
