Centrifugal Filter-Separator FSC 80-100-6.3 for Gas Cleaning

Available for Import

Centrifugal Filter-Separator FSC 80-100-6.3 for Efficient Gas Cleaning

Industrial Gas Filters

Manufacturer: SARATOVGAZAVTOMATIKA LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

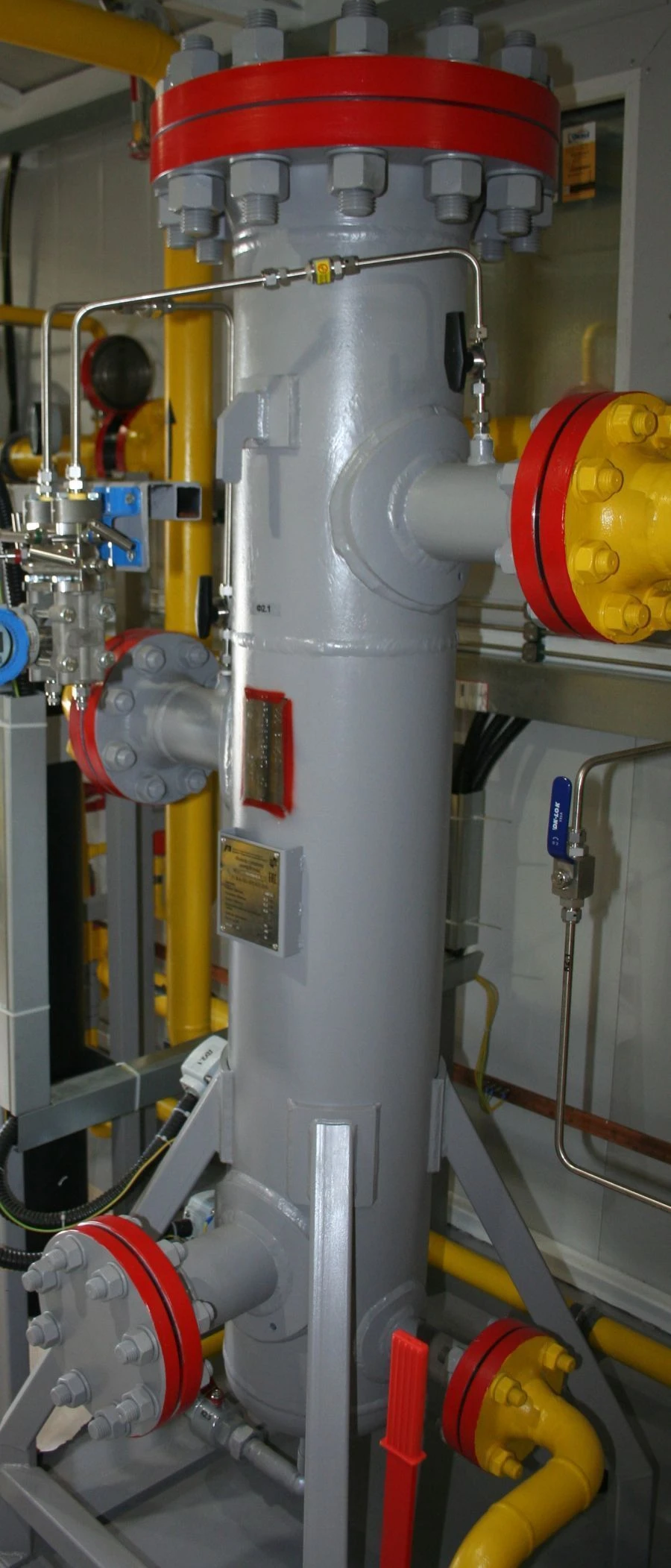

Filter-separator centrifugal FSC 80-100-6,3 zI.2.966.542 is designed for purification of natural main gas and other non-aggressive gases from liquid and mechanical suspended impurities at working pressure of 6,3 MPa. Type of climatic execution of FSC - U1 according to GOST 15150-69. Estimated service life - 30 years.

Warranty period of operation - 18 months from the moment of putting FSC into operation, but not more than 24 months from the date of shipment by the manufacturer. Long-term storage of the product in the preserved form should be carried out in unheated premises or under a canopy and correspond to conditions 6 (OZh2) according to GOST 15150-69 in terms of exposure to climatic factors. It is allowed to store in the preserved form in the open air on the site, providing protection of the product from soil moisture.

Storage period without reconservation is not more than two years.

Specifications

Working environment group according to TR TS 032/2013

Vessel group according to table 1 of GOST 34347-2017

Assigned or estimated service life of vessel

30 year

Empty vessel weight

416 kg

Additive for corrosion (erosion) compensation

3 mm

Fire hazard according to GOST 12.1.004-91

Armoured glass

Explosion hazard according to GOST 12.1.010-76

Armoured glass

Hazard class according to GOST 12.1.007-76

Name of working medium

Natural gas according to GOST 5542-2014 or STO Gazprom 089-2010

Minimum allowable temperature of the vessel wall under design pressure

-40 °C

Design wall temperature

20 °C

Operating temperature

-30 °C

Trial test pressure during manufacture

8 MPa

Design pressure

6.3 MPa

Working pressure

6.3 MPa

Capacity

0.08

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
