Available for Import

Centrifugal Pump for Drainage and Industrial Waste - Zvezda RUS C6-500/110

Centrifugal Liquid Pumps

Manufacturer: MZ POTOK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Centrifugal pump "Zvezda RUS C6-650/145

Description

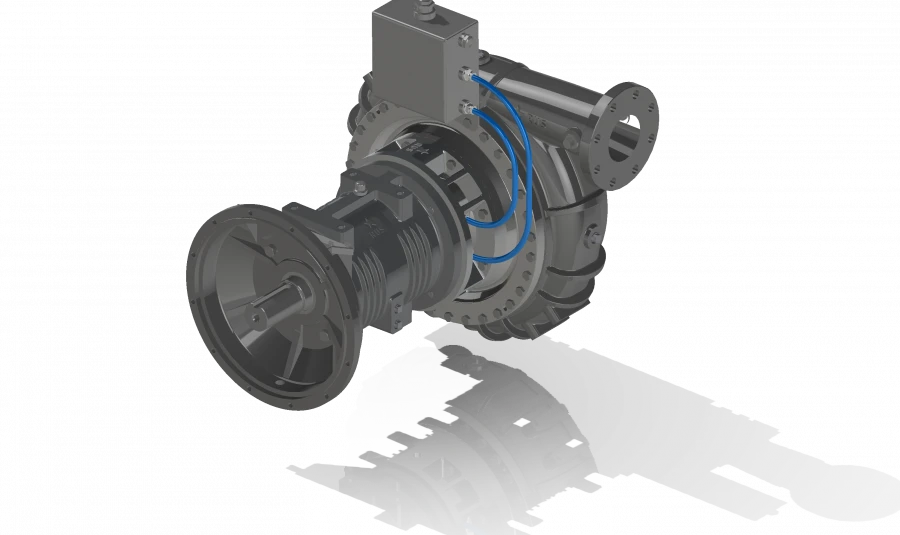

The centrifugal pump is designed for pumping drainage, storm water, domestic and industrial (including chemically aggressive industrial and oil-containing) waste water, liquid organic fertilisers, treated effluents from sewage treatment plants for recycling technical water supply. The pump is suitable for aggregation with electric motor and diesel internal combustion engine. The pump consists of flow and bearing parts rigidly fixed together.

It is equipped with a flywheel crankcase bell housing for connection to the engine. It is driven via an elastic coupling. The bearing housing in which the shaft is housed is cantilevered to the pump casing via a spacer.

Advantages: ZR-DRY system - for pump operation in dry mode with grease supply to the mechanical seal area; ZR-SEAL PROTECT system - prevents foreign particles from getting on the mechanical seal; possibility to install ZR-VAK automatic vacuumisation system.

Specifications

Operating medium

Water, liquids containing solid particles not exceeding 51 mm in size and their mass concentration not exceeding 6%.

Climatic version

U (UHL)

Pressure

50...110 m

Material

Steel

Feeding

100...500

Medium density, not more than

1200

Medium temperature

0...40 °C

RPM

900...2000

Length

875 mm

Diameter

805 mm

Weight

420 kg

Housing material

Cast iron

Outlet pressure

2 MPa

Suction connection diameter

127 mm

Pressure connection diameter

102 mm

EFFICIENCY

72 %

Engine power for aggregation

180 kW

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
