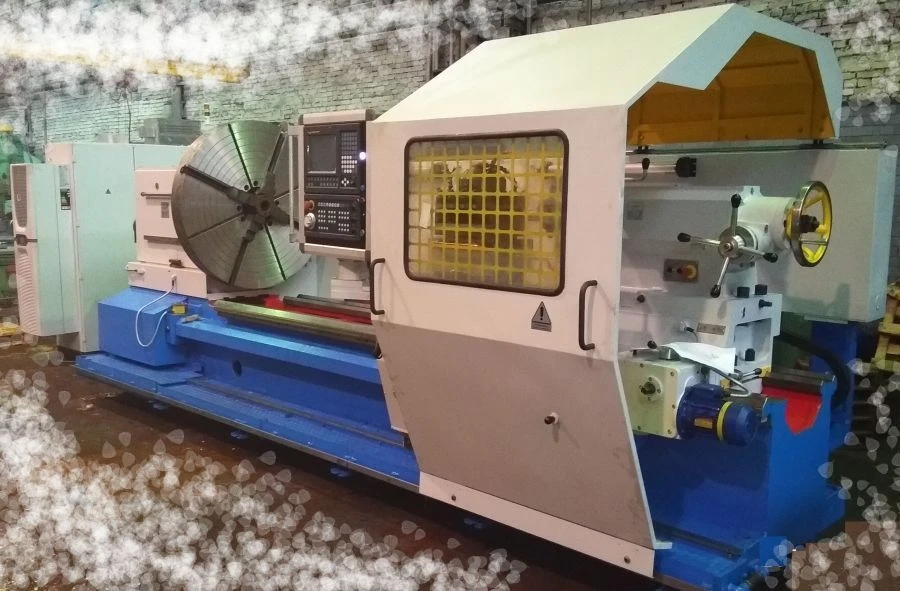

CNC Lathe Machine RT817F3-12 for Precision Turning Components
Manufacturer:
RSZ LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The special turning machine with CNC RT817F3-12 is designed for turning parts of bodies of rotation with straight, stepped, curved profile, threading, drilling, boring, reaming.
Specifications
Type of product according to PP RF 616
Turning and screw-cutting machines (universal, with CNC, CNC)
Length
15600 mm
Width
3100 mm
Height
2100 mm
Machine weight, not more
24000 kg
Machine accuracy class according to GOST8-82
?
Number of simultaneously controlled coordinate axes
2 pcs
Largest diameter of the workpiece to be machined above the slide
1100 mm
Largest diameter of the workpiece to be machined above the bed
1140 mm
Largest diameter of the workpiece to be mounted above the bed
1370 mm
Longest workpiece length
11800 mm
Height of the tool to be mounted
40...50 mm
Maximum transverse movement of the slide
560 mm
Maximum longitudinal movement of the caliper
11760 mm
Discreteness of the Z-axis travel reference
1.0 µm
Discreteness of the X-axis travel reference
1.0 µm
Number of controllable coordinate axes
2 pcs
Spindle speed limits
5...500
X-axis feed rate limits of the caliper
3-2500 mm/min
Working feed rate limits of the slide in the Z axis
3-2500 mm/min
Speed limits for rapid X-axis slide movements
6500 mm/min
Speed limits for rapid movements of the slide in the Z axis
6500 mm/min
Main motion drive power
40...55 kW
Total machine capacity
50...65 kW
Highest torque on the spindle
9.5 kNm
Roughness of the sample product
Ra 2.5 µm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
