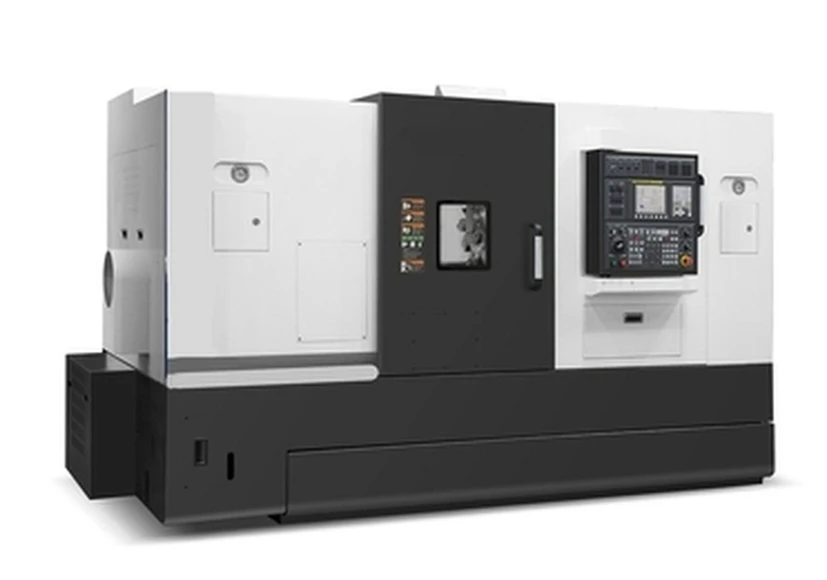

CNC Turning Center for External and Internal Processing TCA 160
Manufacturer:
NPO TSZ LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
The CNC lathe machining centre is designed for external and internal machining of workpieces such as bodies of rotation with rectilinear and curved profiles, including threading in an automatic cycle. It is used for drilling, turning, cutting parts and other works. The area of application of turning machining centre with CNC - processing of parts of various complexity in conditions from small batch to large-scale production in machine shops of machine-building, instrument-making, aircraft, tool and other industries.
Specifications
Type of product according to PP RF 616
Turning machining centers (single and multi-spindle)
Diameter above the bed
480 mm
Max. machining diameter
280/190 mm
Max. machining length
510 mm
Max. bar diameter to be machined
45 mm
Chuck diameter
165 mm
Spindle bore diameter
55 mm
Spindle speed
6000
Spindle headstock
?2-5
Stroke length (X/Z)
165/330 mm
Tailstock quill taper
MT4
Diameter of tailstock quill
55 mm
Moving the tailstock quill
80 mm
Tailstock movement
200 mm
Coolant tank
120 l
Lubrication tank
2 l
Power supply
22.5
Voltage
220 V
Machine dimensions
1920x1610x1615 mm
Machine weight
2930 kg
Number of instruments
B1/B8 2100/900 MHz pcs
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
