CNC Lathe Machine SA600F4 for Precision Machining

Available for Import

CNC Lathe Machine SA600F4 for High-Speed Precision Machining

CNC Metal Lathes

Manufacturer: SASTA PJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

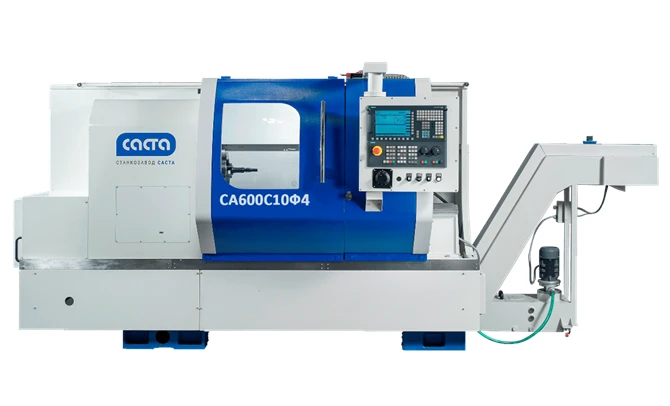

The CA600F4 CNC lathe combines high-speed machining capabilities, high positioning accuracy and repeatability, and high torque. -All of these features expand the machine's processing capabilities, allowing for greater flexibility in the way tasks are performed -The rigid solid cast iron bed, artificially aged to relieve internal stresses, ensures long term stability of the machine's geometric accuracy. -Wide prismatic and flat slideways, hardened to a depth of 1.5-2 mm to a hardness of 52HRC and ground, ensure high durability. -Surfaces of travelling units (carriage, tailstock) are scaled and coated with special antifriction coating for travelling with minimum wear. The machine has modifications CA600C10F4, CA600C15F4, CA600C20F4, CA600C30F4.

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Length

3297 mm

Width

1620 mm

Height

2170 mm

Machine weight, not more

2800 kg

Largest diameter of the workpiece to be mounted above the bed

560 mm

Largest diameter of the workpiece to be machined above the slide

320 mm

X-axis travel (transverse movement of the slide)

278 mm

Z-axis travel (longitudinal movement of the slide)

896 mm

C-axis travel (spindle rotation)

Positioning accuracy

1 mm

Z-axis screw diameter

40 mm

Z-axis screw pitch

10 mm

Z-axis drive power

1 kW

X-axis screw diameter

32 mm

X-axis screw pitch

5 mm

X-axis drive power

1 kW

Maximum spindle speed

2800

Chuck diameter

315 mm

Diameter of the hole in the spindle for the bar

102 mm

Tool change time

Number of tool slots

8 pcs

Maximum rotational speed of the drive tool

4000

drive tool power

3 kW

Moving the tailstock quill

200 mm

Diameter of tailstock quill

100 mm

Maximum coolant pump pressure

Coolant tank capacity

140 l

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
