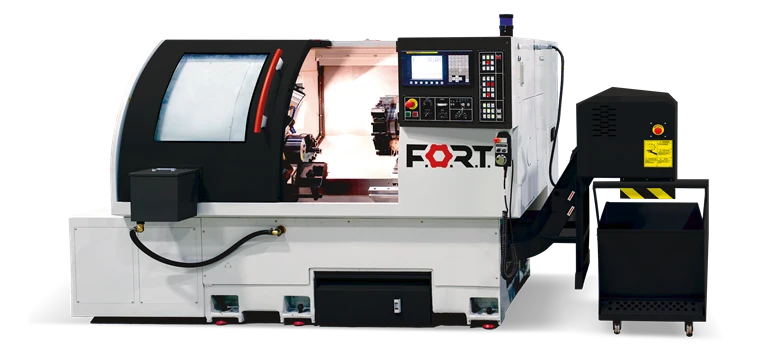

CNC Turning Center for Comprehensive Processing MT-52

Available for Import

CNC Turning Center for Comprehensive Processing of Various Materials - MT-52

CNC Metal Lathes

Manufacturer: BALTIYSKAYA INDUSTRIAL COMPANY OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Purpose: CNC turning machining centre is designed for complex machining of parts made of various materials, including high-alloy, hardened steels. This machine is designed to perform the following operations: boring, turning, machining of end and shaped surfaces, cutting of internal and external threads, etc. The centre is designed to perform the following operations: boring, turning, machining of end and shaped surfaces, cutting of internal and external threads.

Design features: -The bed tilt of 30° allows machining of large diameter parts and facilitates chip evacuation.

-Spindle rigidity is ensured by four tapered bearings. -Strength linear guides and double nut ball screws guarantee static and dynamic rigidity for a long service life. -Accelerated axis speed of 30 m/min.

Accuracy is guaranteed by precision ground ball screw gears of C3 class. -Despite the small overall dimensions, it is possible to work with bars up to 65 mm in diameter. -The turret head with...

Specifications

Type of product according to PP RF 616

Lathes

Machine weight, not more

3200 kg

Height

1680 mm

Width

1820 mm

Length

2500 mm

Power consumption

30 kW

Air flow rate

200 l/min

Pressure

Repeatability X, Y, Z

±0.005 mm

Positioning accuracy X, Y, Z

0.005 mm

Cutter section

25x25, Ø32

Number of turret tool positions

8 (12) pcs.

Accelerated movements X, Z axes

30 m/min

Moving in the Y axis

520 mm

Moving in the X axis

215 mm

Main engine power

11/15 (12/15) kW

Bar hole diameter

42 (52/65) mm

Chuck diameter

169 (200/250) mm

Spindle rotation ranges

6000(5000/4000) rpm

Angle of bed inclination

Length of workpiece to be processed

460 mm

Largest diameter of workpiece to be machined above the slide

210 mm

Largest diameter of the workpiece to be mounted above the bed

500 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
