Directional Apparatus D3550N, 0.87-inch Shaft, Ni-Resist Available for Import

Directional Apparatus D3550N with 0.87-inch Shaft for Efficient Liquid Flow Management

Pump Spare Parts
Manufacturer: REDALIT SCHLUMBERGER LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

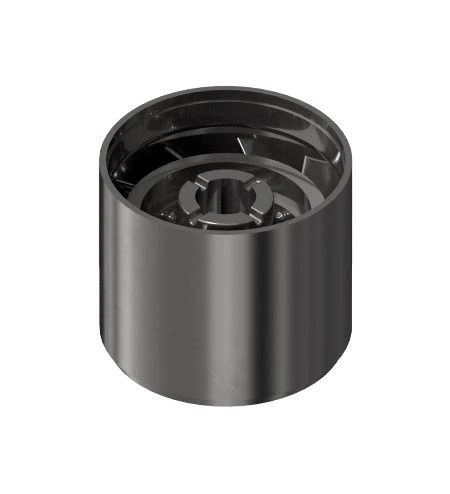

D3550N guiding apparatus. Nominal flow rate 3550 barrels per day (565 m3/d). Application: Element of the pumping stage, which serves for taking the liquid flow from the impeller, converting the kinetic energy of the liquid flow into potential energy, bringing the liquid flow to the next impeller. Diameter - 88,8 mm, height - 74,12 mm, material - alloyed cast iron Niresist. Weight - 1,245 kg.

Specifications

Nominal flow rate
3,550 barrels per day (565 m3/d)
Diameter
88.8 mm
Height
74.12 mm
Material
alloyed cast iron Niresist
Weight
1.245 kg
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
