Available for Import

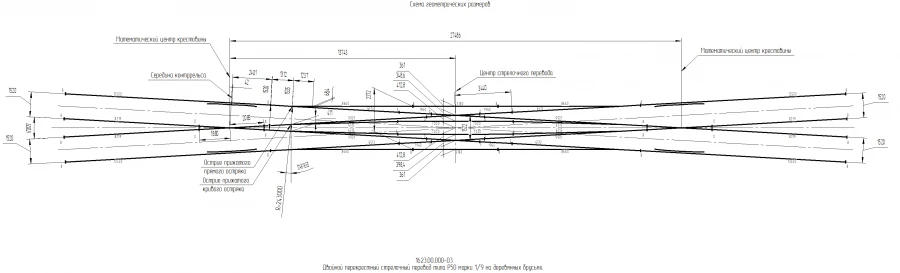

Double Cross Switch R50 Model 1/9 for Efficient Track Switching
Manufacturer:
NSZ OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed for transfer of rolling stock from one track to another. Design features: transfers: crutch and terminal fastening; switches: rotary shackles, liner and overlay root fastening; pads with pads on rivet connection; crosses: blunt mark 1/9 - one-piece moulded from high-manganese steel with inset endings of front and rear spans; sharp mark 1/9 - prefabricated with rail whiskers and moulded core from high-manganese steel with inset-overlay endings of rear spans; counter-rail from angle SP850
Specifications
View
Cross
Type of single transfer
Ordinary
Arrow design
With rotating sharps
Cross brand
1/9
Rail type
?50
Type of product according to PP RF 616
Track equipment and devices and their parts
Type of timber
wooden
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
