R65 Type Switch Point Model 1/5 for Industrial Railways Available for Import

R65 Type Switch Point Model 1/5 for Efficient Industrial Railway Applications

Wide Gauge Track Switches
Manufacturer: MSZ OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The track crossing type R65 grade 1/5 is designed for laying on railway tracks of industrial enterprises. The crossarm is solid cast from high-manganese steel. The counter-rail is made of rolled rail and is connected with the track rail.

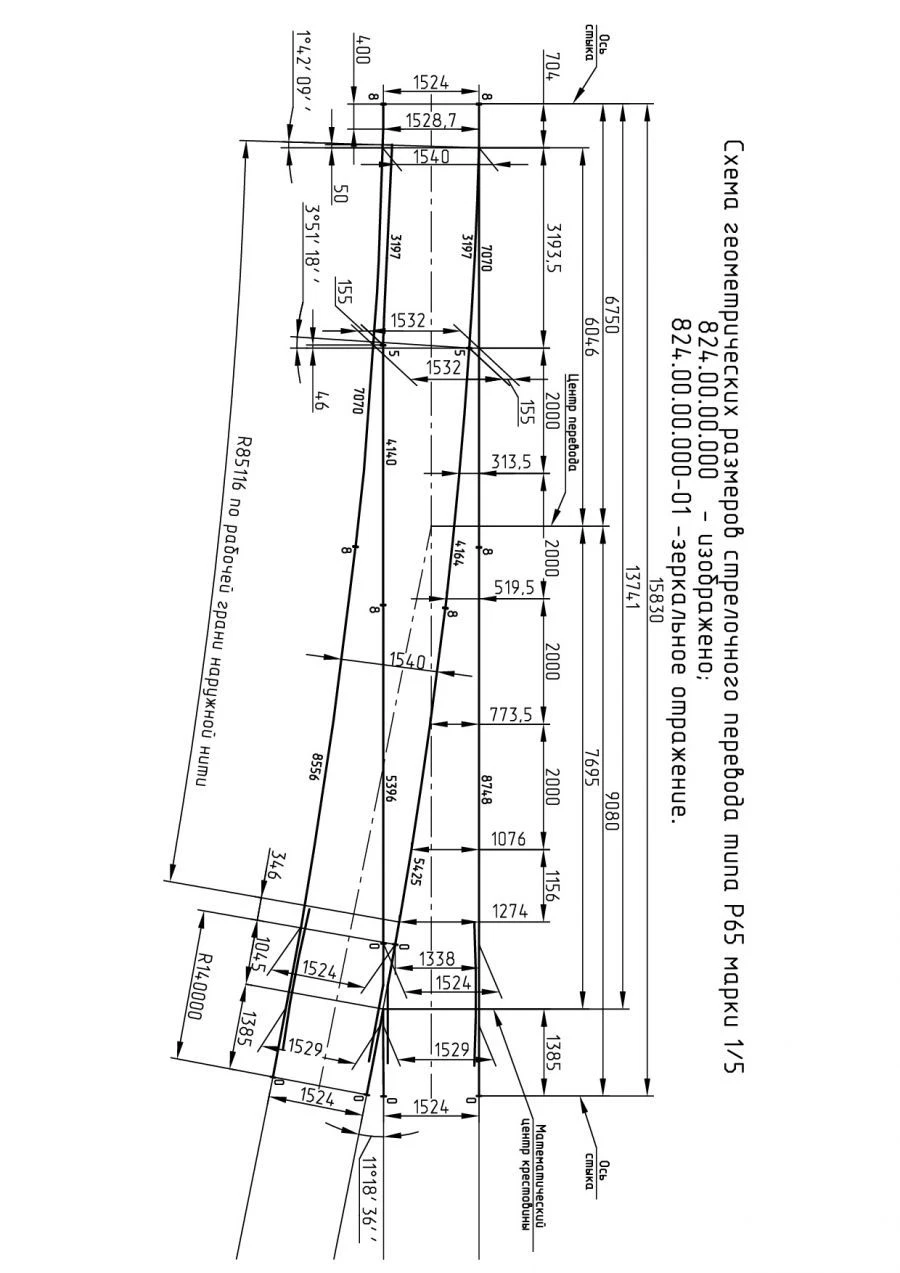

The shackles and frame rails are HFI hardened. The P65 type 1/5 mark 1/5 arrow transfer project 824.00.000/-01 is manufactured in the following versions: 824.00.000 - right-handed; 824.00.000-01 - left.

Specifications

Cross type by construction
Solid
View in the direction of a side or crossing track
Left, right
Rail type
?65
Cross brand
1/5
Arrow design
With rotating sharps
Type of single transfer
Regular
View
Single
Cross type by angle
Spicy
Type of product according to PP RF 616
Track equipment and devices and their parts
Type of single transfer
Ordinary
Type of timber
wooden
Type
?65

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
