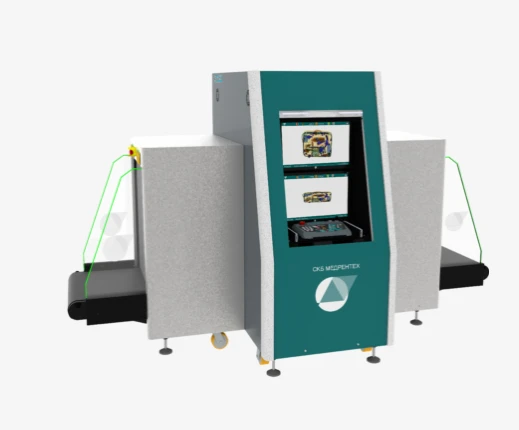

Dual-Projection X-Ray Inspection System for Efficient Baggage and Cargo Screening

The installation has the ability to detect materials (elements) of controlled cargo (drugs, explosives, metals). The image of the inspected object is displayed in two projections, which increases the probability of detection of prohibited materials and reduces the inspection time. The unit belongs to X-ray units for baggage and goods inspection (RUDBT) of the 1st type in accordance with SanPiN 2.6.1.3488-17.

1)Visual distinction of a lead plate with dimensions not less than 10×10 mm and thickness of 1 mm behind a steel plate with thickness not less than 32 mm; 2)Limit contrast sensitivity of the installations shall ensure detection of a single copper wire with a diameter not exceeding 0.08 mm; 3)The resolution should be not less than 1 pair of lines per millimetre; 4)The units shall provide detection of a group of substances by colouring them on the monitor screen; 5)The power consumption of the installation should be not more than 1.5 kV-A.
