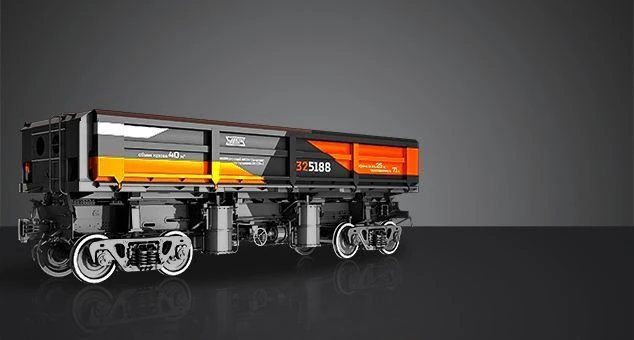

Dump Car Model 32-5188 for Bulk Material Handling

Available for Import

Dump Car Model 32-5188 for Efficient Bulk Material Handling and Transport

Rail Dump Wagons

Manufacturer: URALVAGONZAVOD OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The dump wagon (dumpcar) of model 32-5188 (hereinafter - dumpcar) is designed for mechanised loading, unloading and transportation of bulk and lump cargoes that do not require protection from atmospheric precipitation on mainline railways, tracks of industrial enterprises, construction, open-pit mining, 1520 mm gauge of the Commonwealth of Independent States, Georgia, the Republic of Latvia, the Republic of Lithuania, the Republic of Estonia.

A dump truck is operated on public railway tracks at the speeds set for the respective types of dump trucks, in separate routes weighing no more than 2,600 tonnes, with replenishment by any railway rolling stock in empty condition up to the specified length, and in loaded condition - up to the specified weight.

Dumpcar should be manufactured in UHL version of placement category 1 according to GOST 15150-69 with ensuring operational reliability in the ambient air temperature range from minus 60 °? to plus 50 °?.

Specifications

Type of product according to PP RF 616

Dumpcars dump cars)

Number of axles

4 pcs

Payload

71 t

Tare weight

28.5 t

Minimum permissible tare weight in operation

26.6 t

Geometric volume of the body

Carrying capacity (with slide)

Car length along the coupling axes of couplers

12020 mm

Wagon base

7800 mm

Car height from the level of rail heads

3384 mm

Frame length at end beams

10800 mm

Car width

3200 mm

Body dimensions inside

- length at floor level: 9949; - length at the level of the upper strapping of the board: 10312; - width: 2876; - height: 1375. mm

Body tilt angle at unloading, degree, not less than

45 °C

Design impact load

2t from a height of 2m to a backfill of at least 300mm

Unloading system

Pneumatic

Type of unloading

Double-sided

Working pressure in unloading cylinders

0.4...0.7 MPa

Maximum design static load from wheelset on rails, kN (tf)

245 (25)

Static linear load, kN/m (tf/m)

81,614 (8,319)

Number of tilt cylinders

4 pcs

Dimension according to GOST 9238

- bodies 1-T; - 02-VM trolleys

Design speed

120

Permissible operational speed on industrial transport tracks, not more than

- in empty state - 100; - in loaded state - 90.

Permissible operational speed of the car in loaded condition on industrial transport tracks, not more than

Type of coupling

CA-3

Rolling cart model

18-194-1 type 3 according to GOST 9246 and TU 3183-136-07518941-2006

Maximum tare factor

0.41

Minimum curve radius for passing a single wagon

60 m

Minimum radius of the curve traversed by a car in coupling

80 m

Angle of edge break in relation to the body.

3-11

Height of coupler axis from rail head level

1040...1080 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
