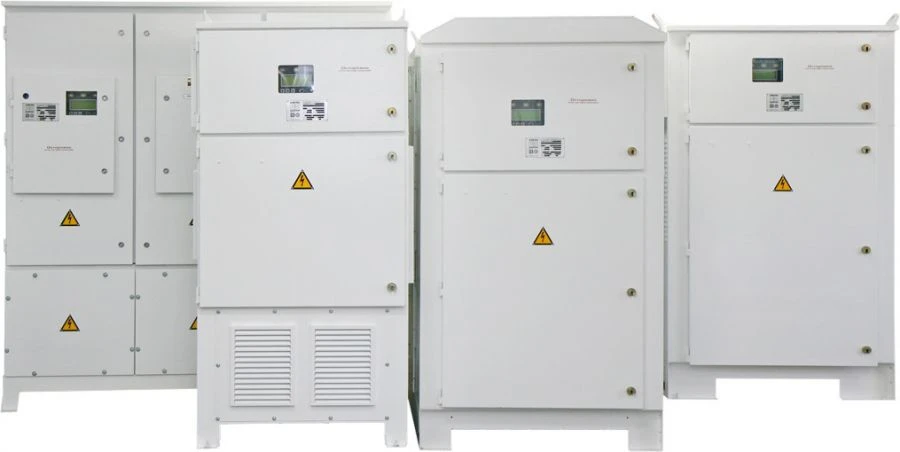

Electon-05 Control Stations for Efficient Motor Management

Electon-05 Control Stations for Managing Three-Phase Motors

Manufacturer:ELEKTRON CJSC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Control Stations (CS) of "Elekton-05" series are designed for control of three-phase asynchronous motors (AM) with squirrel-cage or phase rotor of common general industrial series and (or) three-phase submersible valve motors (VM), for their protection and speed control. The main area of application of the control system is control of submersible motors according to GOST 18058-58 and their protection. SCs can be used for power supply of other electric drives: asynchronous electric motors of general industrial version. Design features of SU of "Elekton-05" series: <ul> <li>- Operation of the controller at short-term voltage drops of the supply network with fixing (recording) of operating parameters;</li> <li>Possibility to install an electricity meter;</li> <li>Protection of power and control electronics from atmospheric precipitation during operation;</li> <li>USB-port for data capture to a standard USB Flash drive;</li> <li>LAN-port for connection to Ethernet network via Modbus TCP protocol.</li> </ul>

Specifications

Climatic version
UHL1 (option: T2) according to GOST 15150-69
Degree of protection
IP43 (option: IP54) according to GOST 14254-80
Rated supply voltage
380 V
Rated current of primary power circuit
32 A
Total power output (at nominal input voltage 380 V)
20
Temperature range
-60...+40 °C
Frequency variation range for asynchronous motor operation
3.5...80Hz with an error not more than ±0.1%(±0.08Hz)
Frequency variation range when operating with a valve motor
5...200Hz ±0.5% at output current variation from 0.5 Inom to Inom
