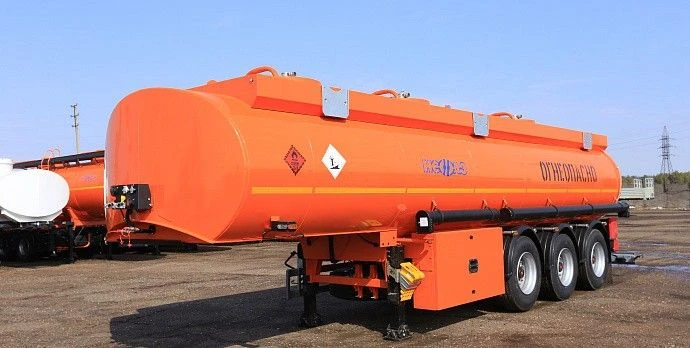

Fuel Tank Semi-Trailer PTC NEFAZ 96931-07 for Transporting Oil Products

The tank semi-trailer is designed for transportation and short-term storage of light oil products. PPP NEFAZ 96931-07 with imported axles, drum brake system, g / d up to 9 tonnes on each axle. Technically permissible maximum mass on each axle, starting from the front axle,kg: 6786...7493/ 6786...7494/ 6787...7493.

The tank is elliptical in shape, with the number of compartments from 1 to 5, calibrated. The tank is equipped with a spare parts drawer, pencil cases for stowing pressure-suction hoses, grooved platform in the neck area with a folding handrail and a ladder. Three-axle bogie with single-axle coupling.

The suspension is dependent, pneumatic, with a lifting front axle. The support device serves as a front support for the PPP uncoupled from the tractor. Braking systems: working - with pneumatic two-conductor drive, drum-type brakes of all wheels, with EBS; parking - with drive from spring energy accumulators to the brakes of the wheels of the middle and rear axles.
