Full Leg Orthopedic Device for Enhanced Mobility and Support
Manufacturer:
IPR "ORTOTIS" LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

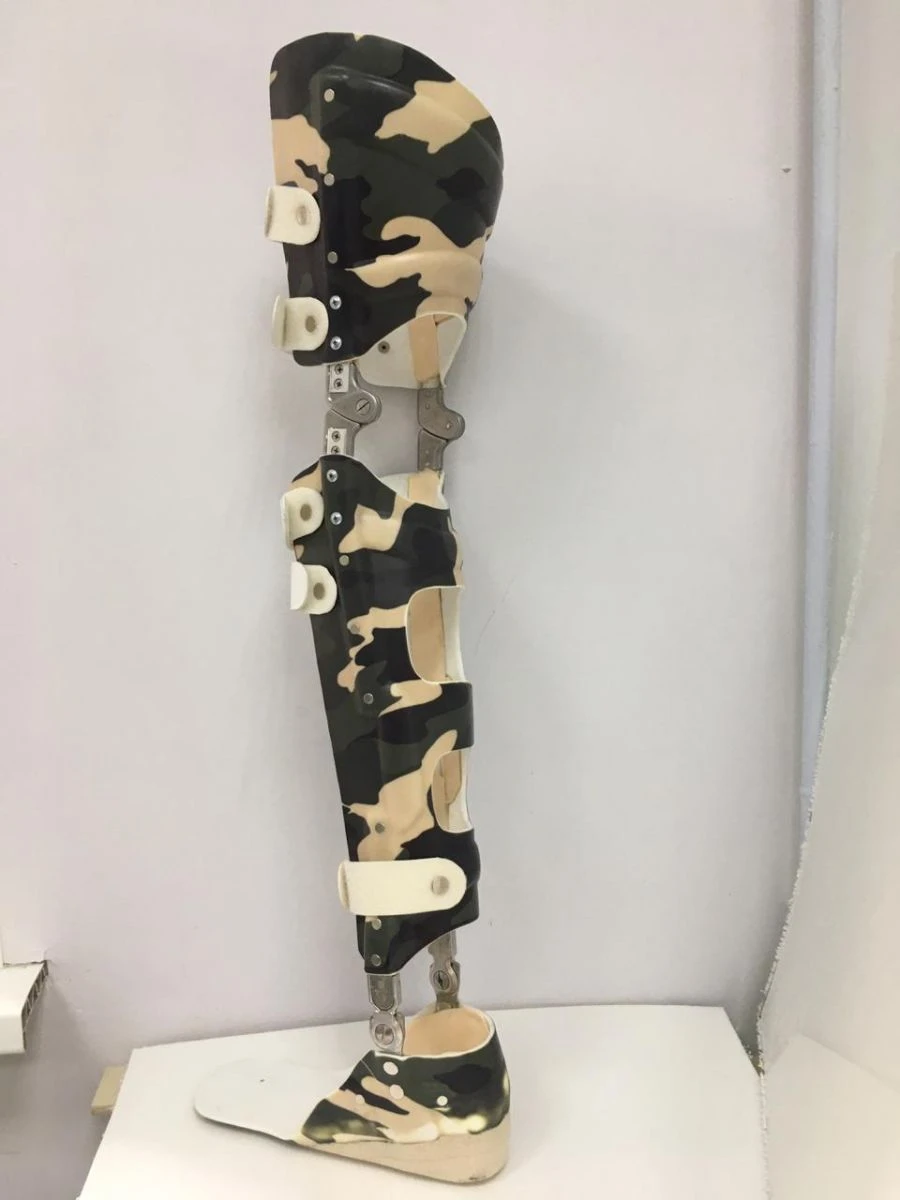

An apparatus for the whole leg fixing, sleeves made of high-temperature and low-temperature thermoplastic (the type of material used depends on the individual characteristics of the patient), with a softening liner made of foam elastic material, the sleeves are connected to each other knee and ankle modules. Knee modules are lockable or lockless (depending on the medical indications for a particular patient). In the manufacture of the device used nodes (modules) and semi-finished products with improved properties, made individually, according to the impression, the purpose - permanent.
Specifications
Axis displacement in a locking unicondylar knee assembly
From 8 to 12 mm in nodes with load levels P1, P2 and not more than 20 mm in nodes with load levels P3, P4, P5, P6.
Angular movement of the splint foot in the sagittal plane from the zero position in the knee assembly
95° to 110°
Axis dislocation at the ankle joint
11 to 16 mm in nodes with load levels P1, P2 and not more than 25 mm in nodes with load levels P3, P4, P5, P6
Angular movement of the splint foot in the sagittal plane from the zero position at the ankle joint
Not more than 20° to the rear bending side and not more than 30° to the plantar bending side.
Level of load on apparatus units
P1 - 25 kg, P2 - 45 kg, P3 - 60 kg, P4 - 80 kg, P5 - 100 kg, P6 - 125 kg
Completeness
Conforms to process documentation and order conditions
Material
Basic materials - sheets of polyolefin types PE, Foam materials (thermo-formed) are used as a softening layer; Unified assemblies made of metals.
Axis displacement in unicondylar knee assembly without locking
From 8 to 12 mm in nodes with load levels P1, P2 and not more than 22 mm in nodes with load levels P3, P4, P5, P6.
