Available for Import

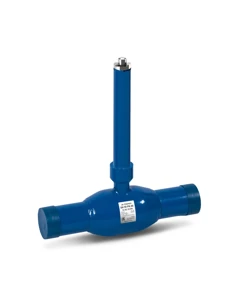

Full Passage Ball Valve 492 with Extended Stem for Underground Installation
Manufacturer:
TEMPER LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Full bore 492 ball valve with extended stem for underground installation, 49220125.
Standard bore 482 ball valve with extended stem for underground installation, 48220500.
Standard bore 482 ball valve with extended stem for underground installation, 48220040.
Full bore 492 ball valve with extended stem for underground installation, 49220040
Full bore 492 ball valve with extended stem for underground installation, 49220100.
Description
Connection type:
welded/welded
Work Environment:
heating water, oil products, petroleum products, fuels and lubricants, gaseous and other working media not aggressive for materials of valve parts.
welded/welded
Work Environment:
heating water, oil products, petroleum products, fuels and lubricants, gaseous and other working media not aggressive for materials of valve parts.
Specifications
Airtightness class
Class "A" GOST R54808-2011
Diameter
400 mm
Nominal pressure
25 MPa
Construction length
970 mm
Connection type
Welded
Aisle
complete
Flange for mounting the actuator
without flange
Execution
underground
Enclosure materials
Steel 20/09G2S/12Cr18Ni10T
Minimum temperature, up to
-40 °C
Maximum temperature, up to
200 °C
Service life, at least
25 year
Warranty period
3 year
Warranty period, cycles
10000
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
