Guiding Apparatus D460N for Efficient Liquid Flow Control

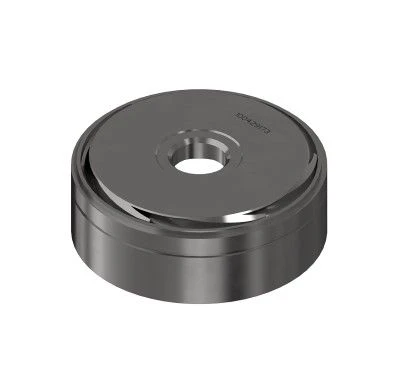

D460N guiding apparatus. Nominal flow rate 460 barrels per day (73 m3/d). Application: Element of the pumping stage, serving for taking the liquid flow from the impeller, converting the kinetic energy of the liquid flow into potential energy, bringing the liquid flow to the next impeller. Diameter - 88,77 mm, height - 31,88 mm, material - alloyed cast iron Niresist. Weight - 0,44 kg
