Induction Cable Locator IKkt-300 for Efficient Underground Cable Detection
Manufacturer:
Kvazar LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The trace detector belongs to the class of indicators and is designed to determine by induction method the location of power cables without opening the ground, the routes of metal pipelines for various purposes.
The IKkt-300 trace detector has two operating modes:
non-contact - locating of operating power cables with current load, as well as energised pipes from cathodic protection stations;
contact - locating underground pipelines and de-energised power cables using the trace detector generator connected to the pipeline (cable) to be detected.

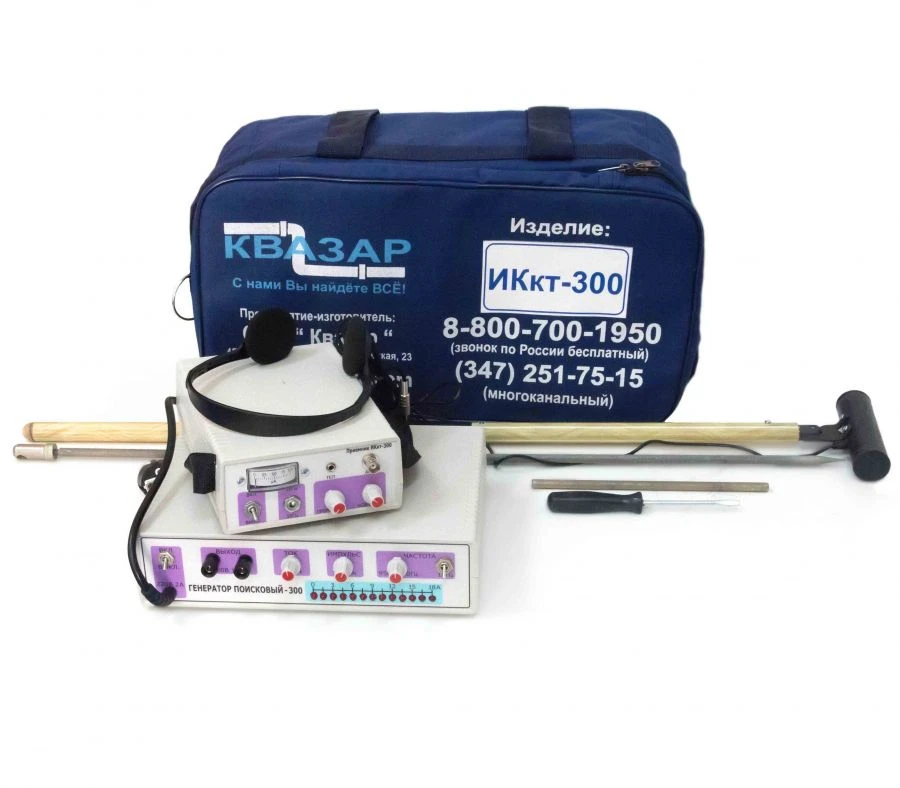

The IKkt-300 device consists of a generator and a receiver.
The IKkt-300 trace detector has two operating modes:
non-contact - locating of operating power cables with current load, as well as energised pipes from cathodic protection stations;
contact - locating underground pipelines and de-energised power cables using the trace detector generator connected to the pipeline (cable) to be detected.
The IKkt-300 device consists of a generator and a receiver.
Specifications
Search range
up to 3 km
Accuracy of search of underground communications from depth of occurrence of communications
5 %
Dimensions of the product packed in a case
200x350x460 mm
Weight of the product packed in the case
6,5 kg
The generator is powered by AC mains power supply
voltage 220±20V; frequency 50 - 60Hz V
Output voltage at 10 Ohm load is, at least, V
20 V
Maximum load current in the range, A
0,15 to 15 A A
Generator frequency (fixed)
1000±2
Adjustable frequency
950 to 1100
Three-cell (AA) receiver power supply voltage, V
3.3 to 5 V
Central frequency of the receiver bandwidth in active mode, Hz
1000±50
The device retains its operability at operating temperatures, oÑ
From -20 to +40 °C
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
