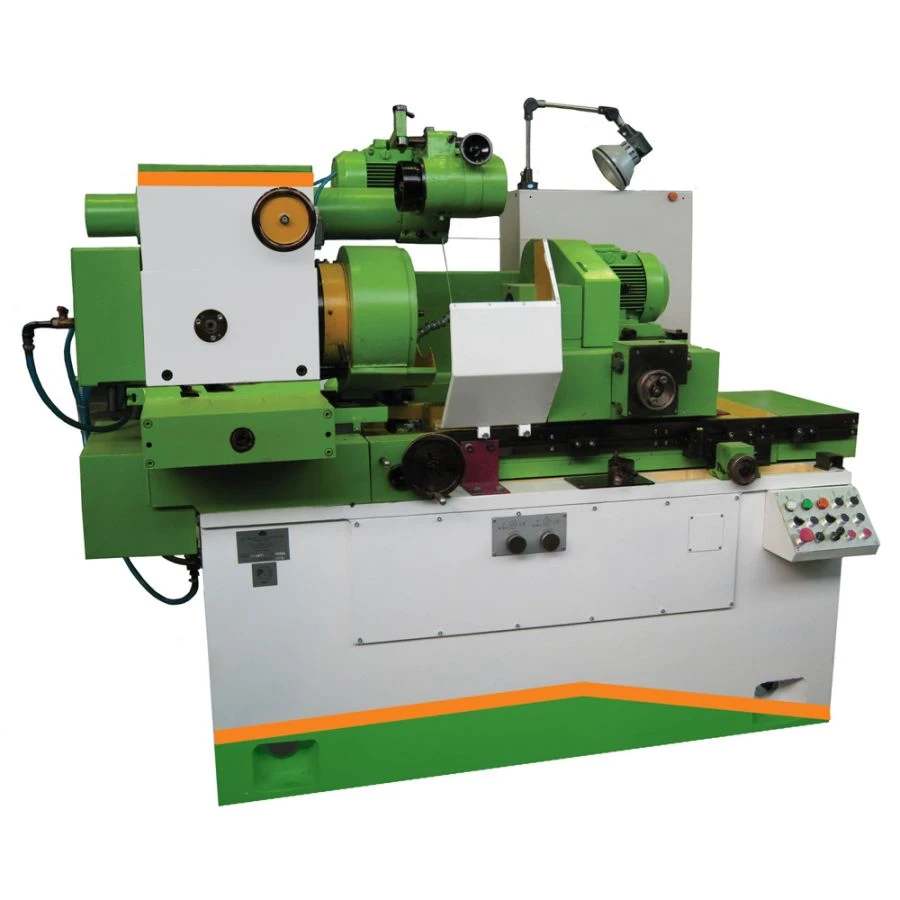

Internal Grinding Machine Model 3L228A for Precision Internal Grinding

Metal Grinding Machines

Manufacturer: STP-LSP OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The main purpose of internal grinding machines is internal circular grinding of blind as well as through holes of conical and cylindrical shape. Machines of this type allow the grinding of workpiece ends. During internal grinding, it is important to pay attention to the fact that the cutting process is significantly affected by the size of the product, as well as the diameter of the hole that is being ground. Such machines are widely used in hole grinding tasks. The holes themselves are machined by plunge and by-pass. The grinding wheel is fed manually or hydraulically.

Internal grinding machines are categorised according to the type of tasks they perform:

in repair shops and tool shops; for working on seating holes; for working with through, cylindrical, blind, conical holes.

Specifications

Type of product according to PP RF 616

internal grinding machines (universal, Uzi, CNC)

Length

3535 mm

Width

1460 mm

Height

1870 mm

Model

3L228A

Accuracy class

Diameter of the hole to be ground

50...300 mm

Largest diameter of the product to be installed

560 mm

The largest diameter of the workpiece to be installed in the hood.

400 mm

Maximum length of the product to be installed

320 mm

Longest grinding length at the largest grinding diameter

320 mm

Longest grinding length at the smallest grinding diameter

125 mm

Diameter of the sleeve of the internal grinding head

80 mm

Conditional size of the spindle end of the product according to GOST 12595-72

2...8 mm

Distance from table mirror to product spindle axis

340 mm

Distance from the spindle axis of the workpiece to the foot of the bed.

1225 mm

Maximum distance from the support face of the product spindle flange to the face of the grinding headstock housing

1335 mm

Machine weight

5600 kg

Machine weight with electrical cabinet, emulsion tank, hydraulic tank and accessories

6400 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
